- Battery Type:Lithium coin cell battery
- Application:3D Watch Thermometer SAT receiver Remote Camera Dog bark collar

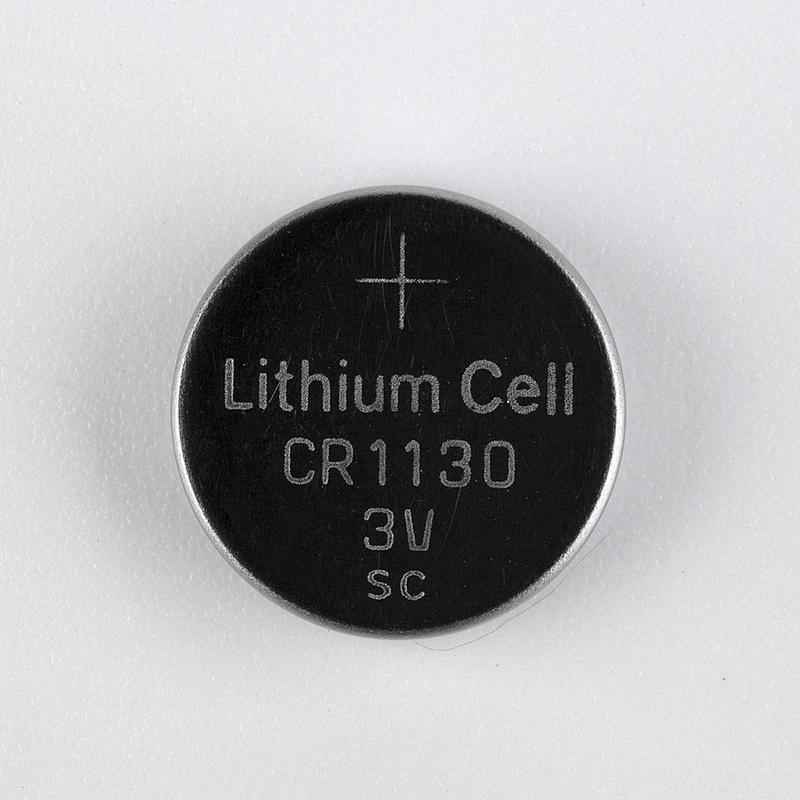

- Product name:CR1130
- Size:11.6*3.0mm

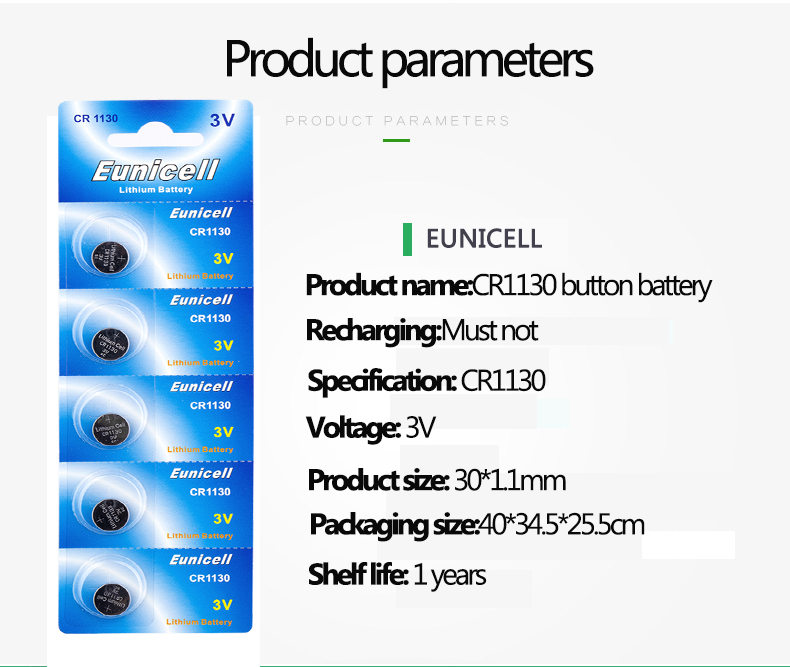

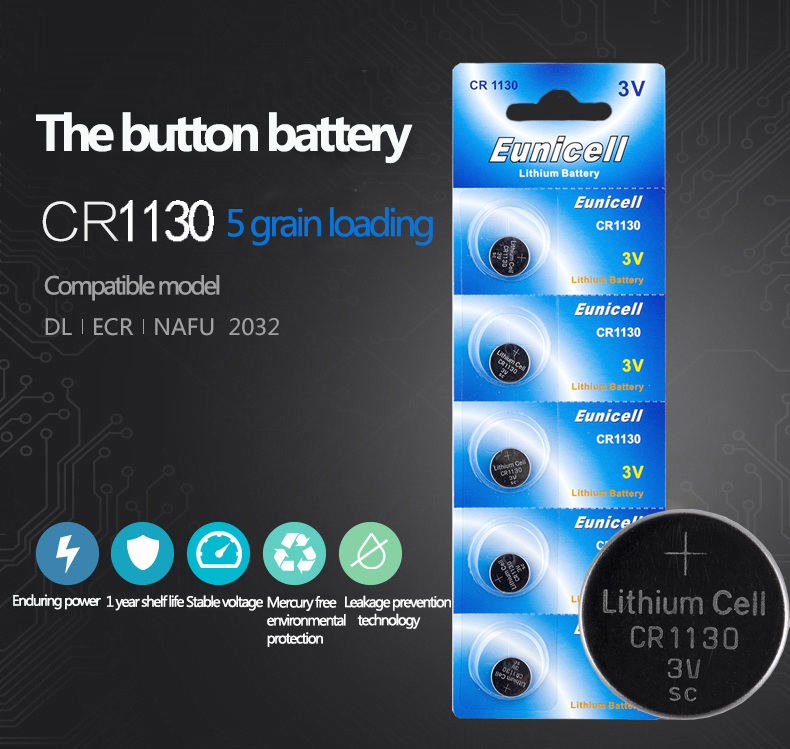

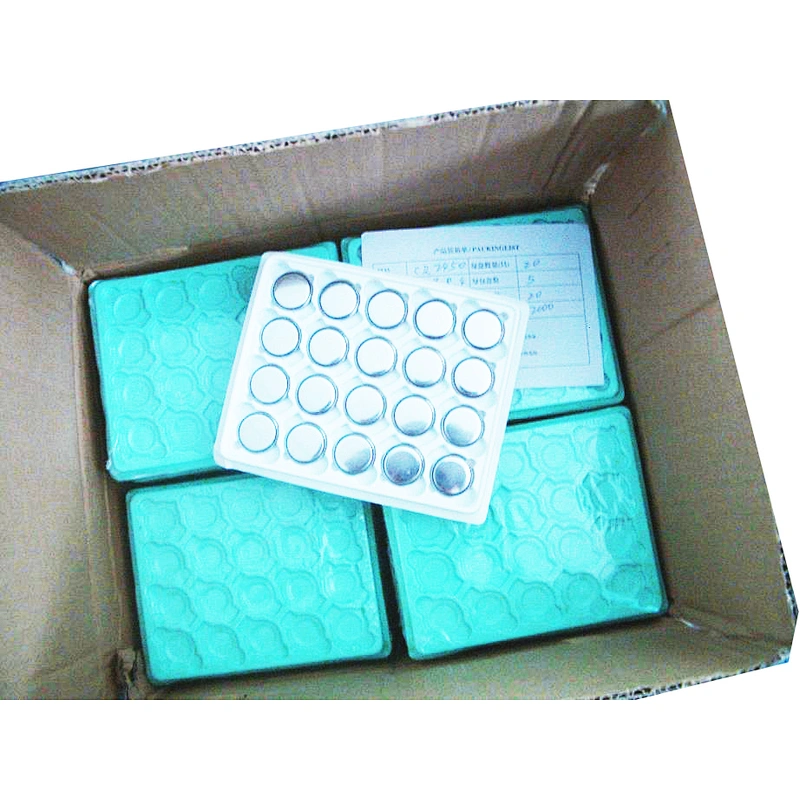

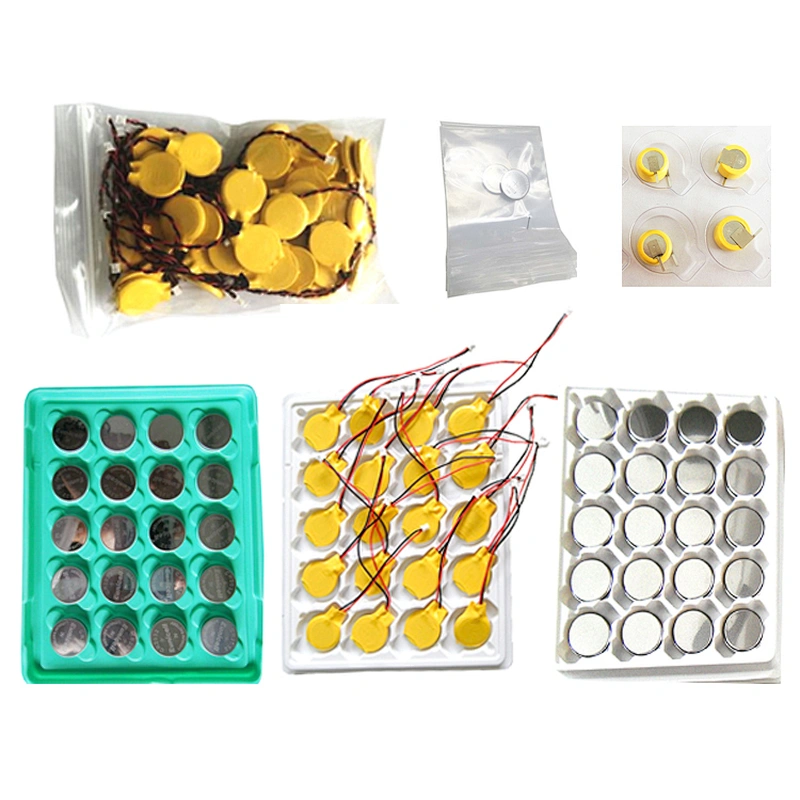

- Package:Blister Card Industrial bulk tray
- Shelf life:2 Years
- Voltage:3Volts
- Capacity:40mAh
- Payment:Trade Assurance.TT.Western Union
- Brand:EUNICELL or OEM Brand
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics

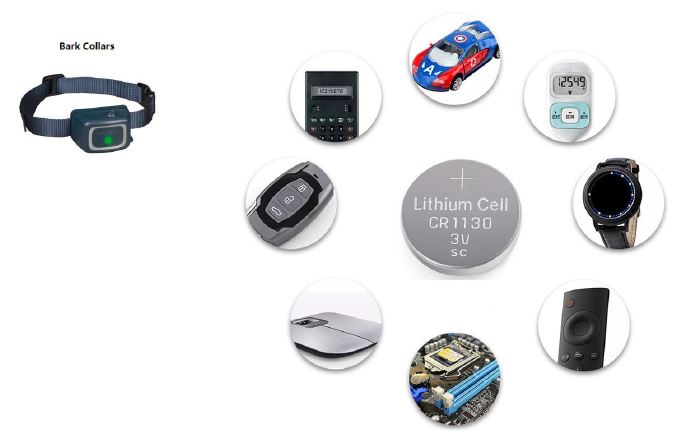

- Application:3D glass Watch Calculator Thermometer SAT receiver Remote Camera Glucometer Dog bark collar
- Shape:Button
- Shape:Coin cell
- Place of Origin:CN;GUA
- Battery Size:11.5mm*3mm
- Brand Name:EUNICELL, Neutral or OEM
- Certification:CE,ROHS,SGS,REACH,MSDS,UN38.3
- Model Number:CR1130 DL1130 BR1130 KL1130 ECR1130 KECR1130
- Weight:0.9g
Product Description
MODEL | NOMINAL VOLTAGE(V) | MAX.SIZE | NOMINAL CAPACITY (mAh) | SUGGESTED OPERATION CURRENT | WEIGHT (g) | ||||||
NOMINAL VOLTAGE(V) | DIAMETER MAX.SIZE (mm) | HEIGHT MAX.SIZE (mm) | NOMINAL CAPACITY (mAh) | STANDARD CURRENT (mA) | MAX. CURRENT (mA) | CONTINUOUS CURRENT (mA) | EACH PIECE WEIGHT (g) | ||||
CR632 | 3.0V | 6.8 | 3.2 | 15 | 0.03 | 3 | 1 | 0.2 | |||
CR927 | 3.0V | 9.5 | 2.7 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1025 | 3.0V | 10 | 2.5 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1130 | 3.0V | 11.6 | 3 | 40 | 0.05 | 5 | 1 | 0.9 | |||
CR1216 | 3.0V | 12.5 | 1.6 | 25 | 0.05 | 5 | 1 | 0.7 | |||
CR1220 | 3.0V | 12.5 | 2 | 40 | 0.05 | 5 | 1 | 0.85 | |||
CR1225 | 3.0V | 12.5 | 2.5 | 48 | 0.1 | 5 | 1 | 1.3 | |||
CR1616 | 3.0V | 16 | 1.6 | 50 | 0.1 | 8 | 1 | 1.15 | |||
CR1620 | 3.0V | 16 | 2 | 70 | 0.1 | 8 | 2 | 1.2 | |||
CR1625 | 3.0V | 16 | 2.5 | 90 | 0.1 | 8 | 2 | 1.4 | |||
CR1632 | 3.0V | 16 | 3.2 | 120 | 0.2 | 10 | 2 | 2.4 | |||
CR2020 | 3.0V | 20 | 2 | 115 | 0.2 | 15 | 2 | 2.1 | |||
CR2016 | 3.0V | 20 | 1.6 | 75 | 0.2 | 15 | 2 | 1.75 | |||
CR2025 | 3.0V | 20 | 2.5 | 150 | 0.2 | 15 | 3 | 2.4 | |||
CR2032 | 3.0V | 20 | 3.2 | 210 | 0.2 | 15 | 5 | 2.9 | |||
CR2050 | 3.0V | 20 | 5 | 300 | 0.4 | 20 | 3 | 3 | |||
CR2320 | 3.0V | 23 | 2 | 150 | 0.2 | 18 | 8 | 2.9 | |||
CR2325 | 3.0V | 23 | 2.5 | 210 | 0.2 | 18 | 8 | 3.5 | |||
CR2330 | 3.0V | 23 | 3 | 250 | 0.2 | 18 | 8 | 4 | |||
CR2354 | 3.0V | 23 | 5.4 | 480 | 0.2 | 18 | 8 | 6 | |||
CR2430 | 3.0V | 24.5 | 3 | 275 | 0.2 | 18 | 10 | 4.5 | |||
CR2450 | 3.0V | 24.5 | 5 | 540 | 0.4 | 18 | 13 | 6.2 | |||
CR2477 | 3.0V | 24.5 | 7.7 | 1050 | 0.5 | 20 | 13 | 8.7 | |||
CR3032 | 3.0V | 30 | 3.2 | 580 | 0.5 | 20 | 13 | 8 | |||

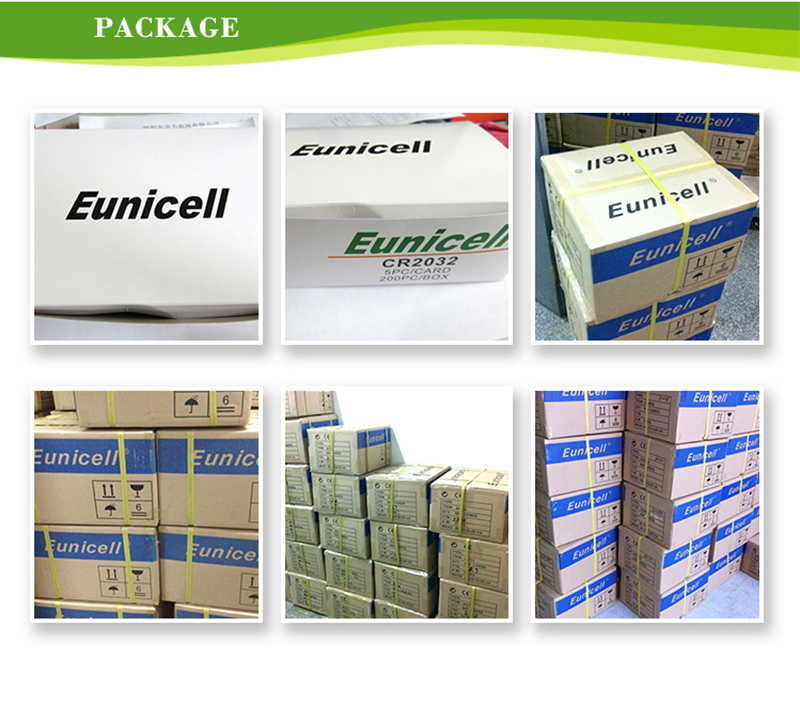

Packaging & Shipping
Company Information
FAQ
Send Message
Related Products
Model NO. CP1654, LIR1654
CR2032 Button Cell Battery holder 3V Nominal Voltage cr2032 battery clip / connector / sprint holder
Model NO. CR2032, CR2032 holder, E-CR2032-W
Model NO. CR1620 / DR1620 / ICR1620 / 1620
Model NO. CR1216, DL1216, 1216
Model NO. CR2032, DL2032, BR2032
Model NO. CP1254, ICR1254, LIR1254
Model NO. LIR1454 CP1454 ICR1454
Model NO. LIR1254, CP1254, ICR1254, 1254
Related search: CR1130 battery for Dog bark collar Car alarm Glucometer Heart rate monitor SAT receiver Camera 3D gl ,

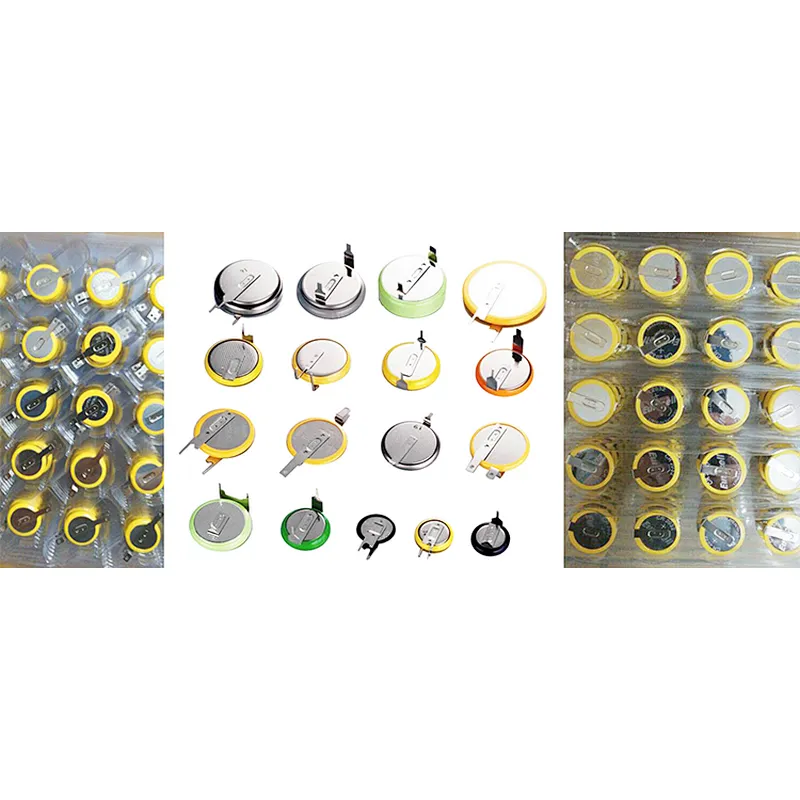

1130 Lithium Manganese Dioxide button cell coin battery with lead wire holder connector solder tabs ,
