- Battery Type:LiMnO2
- Certification:ce
- Brand Name:EUNICELL
- Model Number:CR1220
- Place of Origin:CN;GUA
- Application:Watch

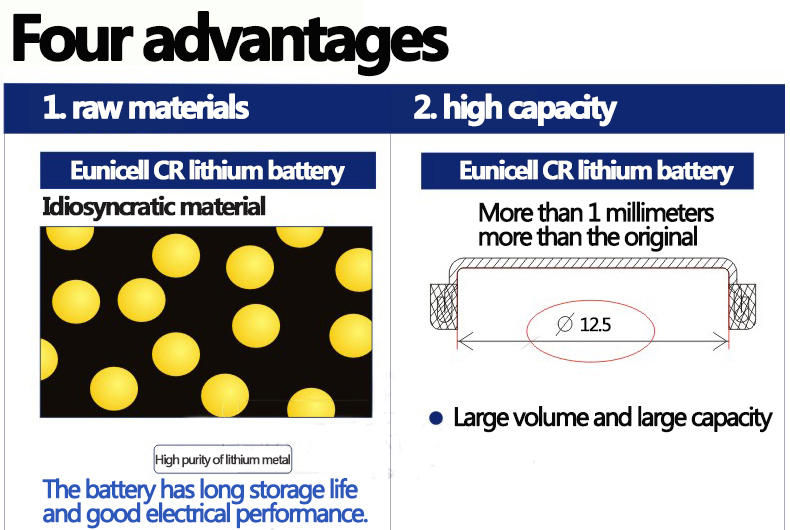

- Size:12.5*2.0 mm
- Certificate:CE ROHS SGS MSDS

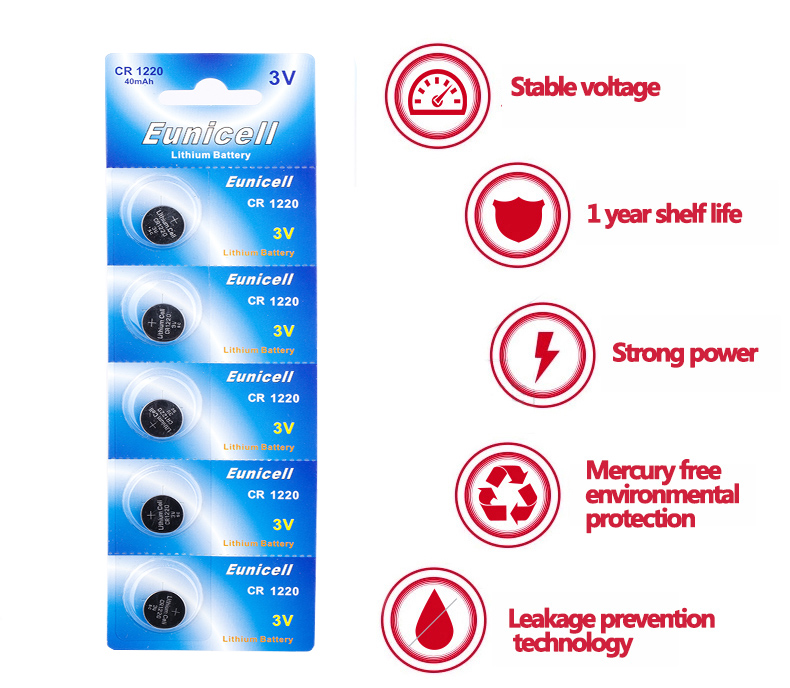

- Package:Blister Card
- Type:Lithium Botton Cells
- Product Name:CR1220 3V Lithium Battery Cell
- Weight:0.85g
- Shelf life:1 Year

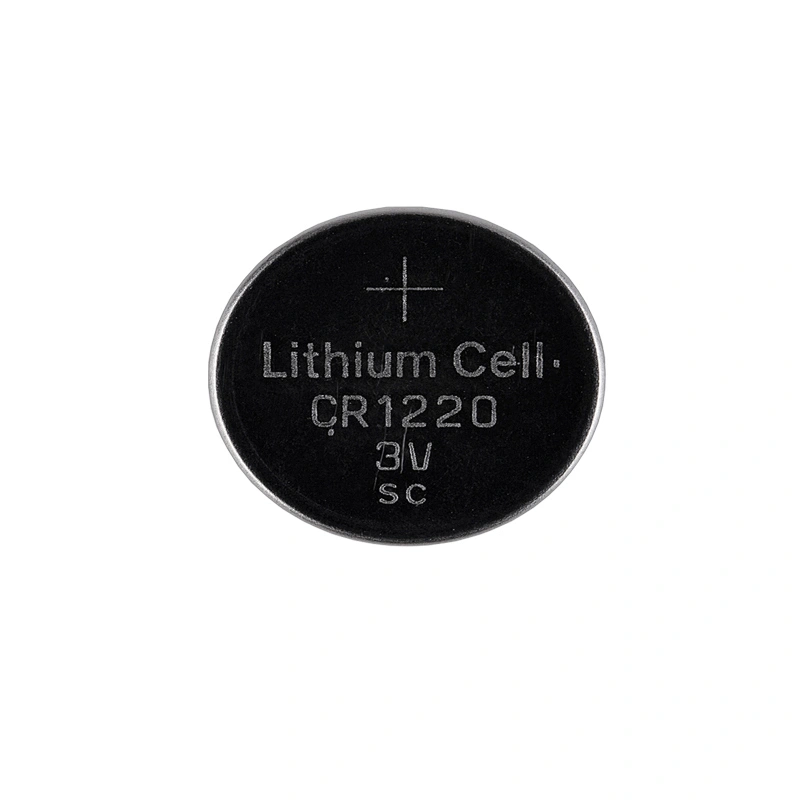

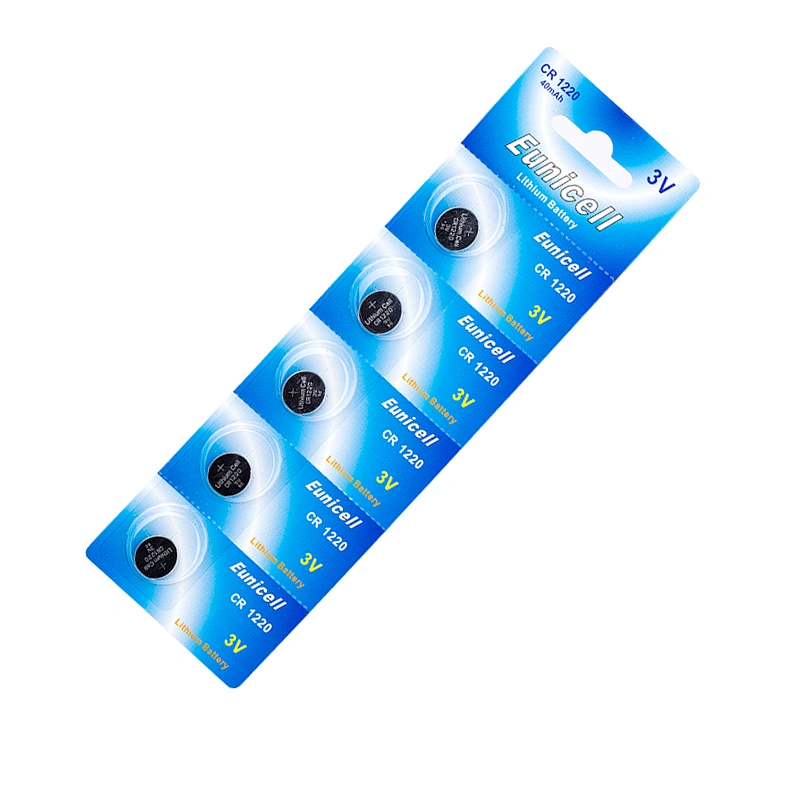

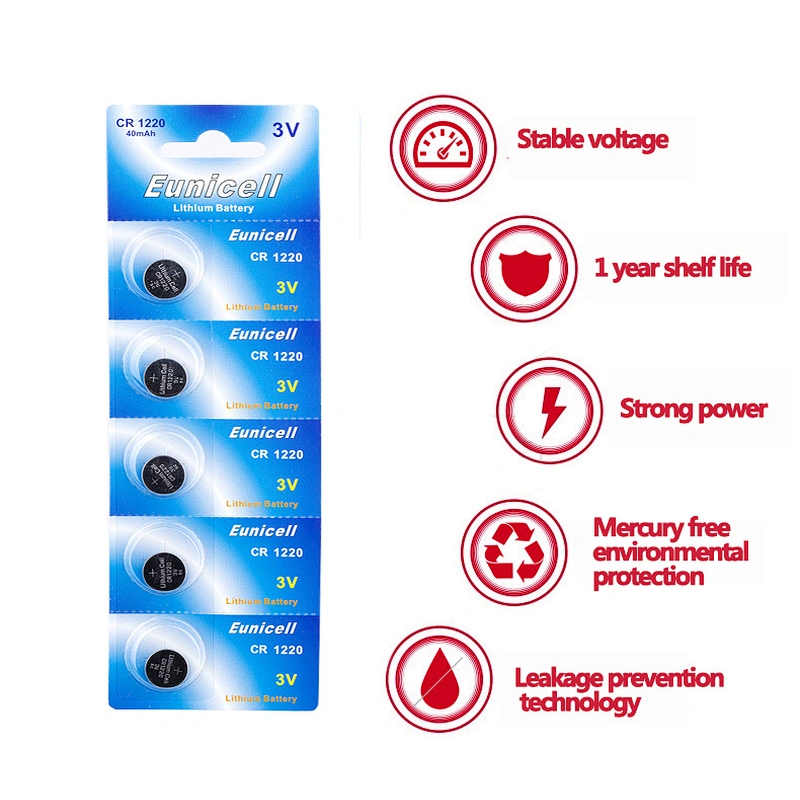

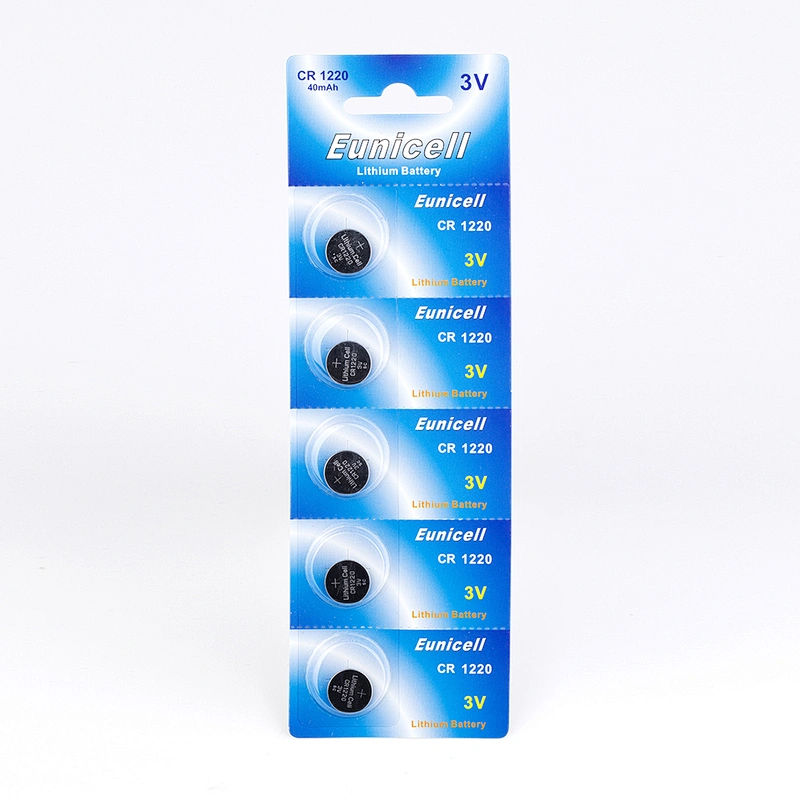

Eunicell CR1220 Lithium Manganese Dioxide Primary Coin Cell Battery
ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
Nominal voltage | V | 3.0 | Standard discharge | |
Nominal capacity | mAh | 40 | Standard discharge | |
Instantaneous short-circuit current |
mA |
≥100 |
Time≤0.5second | |
Off-load voltage | V | ≥3.20 | Unit cell | |
Storage temperature | ℃ | 0-35 |
| |
Standard weight | g | 0.85 | Unit cell | |
Service output | Initial | h | 60 | Continuous discharge with load 4.7 kΩ ,till 2.0v end-voltage at 20-25℃ |
After 12 months storage | h | 59 | ||
Matters of attention:
1. Because the button battery is not recharged at a time, forced charging will cause leakage or damage to the equipment.
2. Battery"+ -"should be installed correctly in the direction specified by the equipment.
3. Prohibit short-circuit, heating, burning and disassembling batteries.
(more products please go to official website: https://eunicellbatteries.en.alibaba.com welcome new and old friends to contact us by phone! We will serve you wholeheartedly!)
East(Shenzhen)Technology Co.,ltd (Eunicell Battery) is a high-tech enterprise specializing in developing, developing, producing and selling batteries, which belong to two factories, such as production buckle lithium manganese dioxide, buckle type zinc manganese alkaline, cylindrical carbon, alkaline battery and so on.
