- Application:Toys
- Application:Power Tools
- Place of Origin:CN;GUA
- Battery Size:9.0*4.0mm
- Brand Name:Eunicell
- Certification:SGS/CE/MSDS
- Model Number:LIR940/CP940
- Application:Bluetooth earphone
- Brand Name::Eunicell
- Place of origin;:China
- Model No;:lir940/CP940
- Normal Capacity;:25mAh
- Application::Bluetooth Product,portable device, Wireless Headphones
- Certificate::CE/SGS/ROHS/MSDS
- Battery type::Lithium Iron Battery Cell
- Size::9.0*4.0mm
- Warranty Time:12 Moths

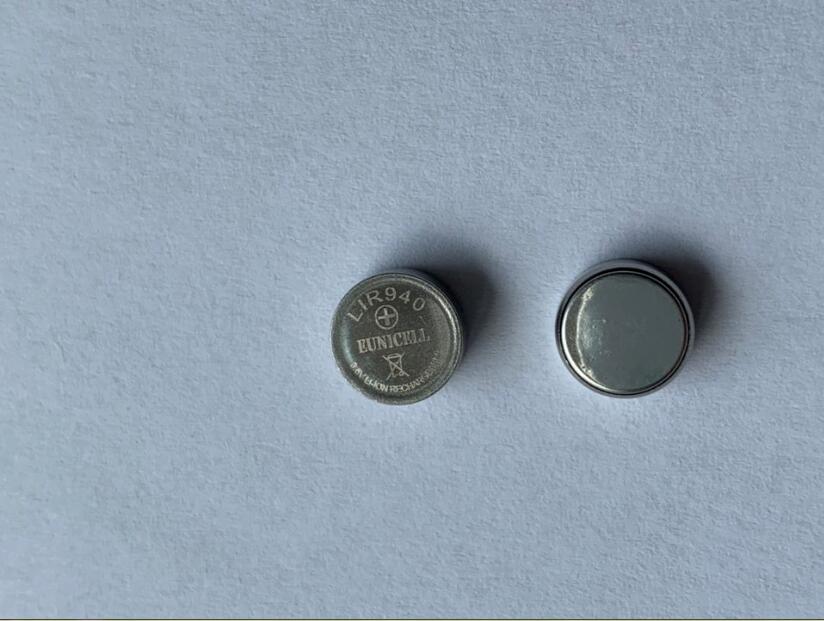

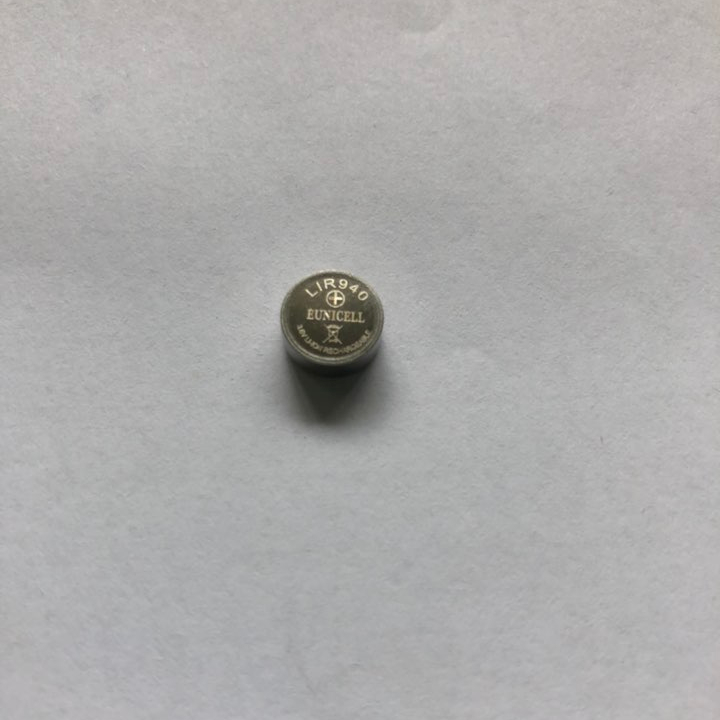

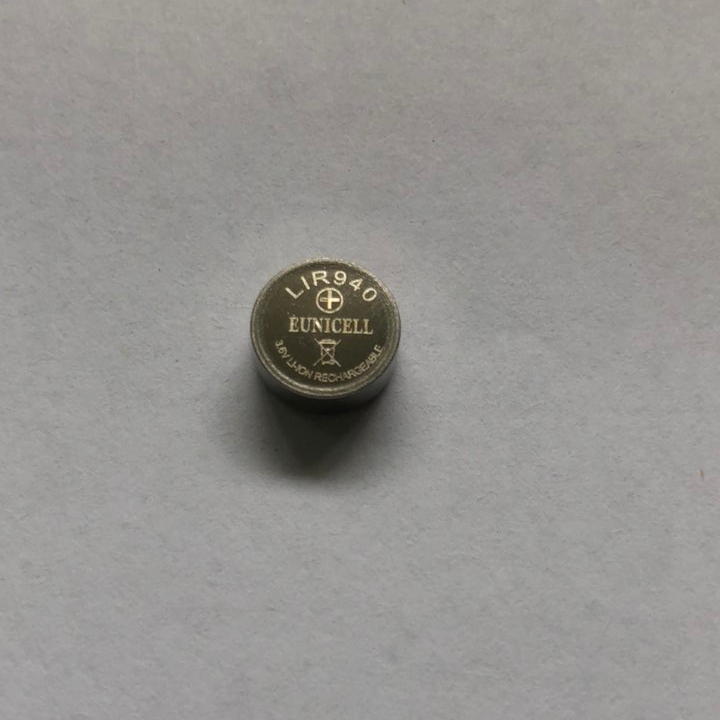

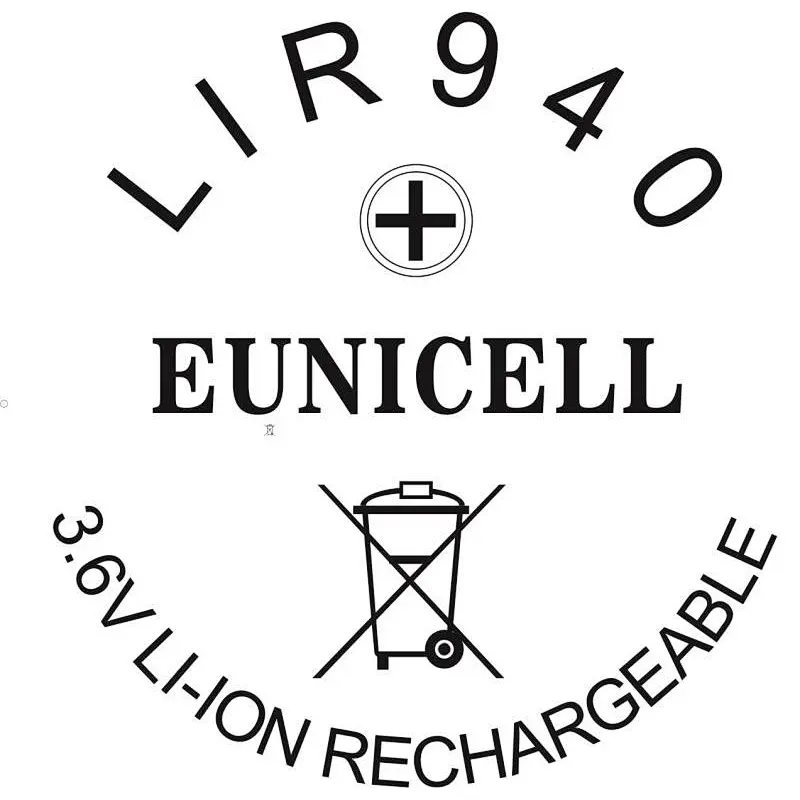

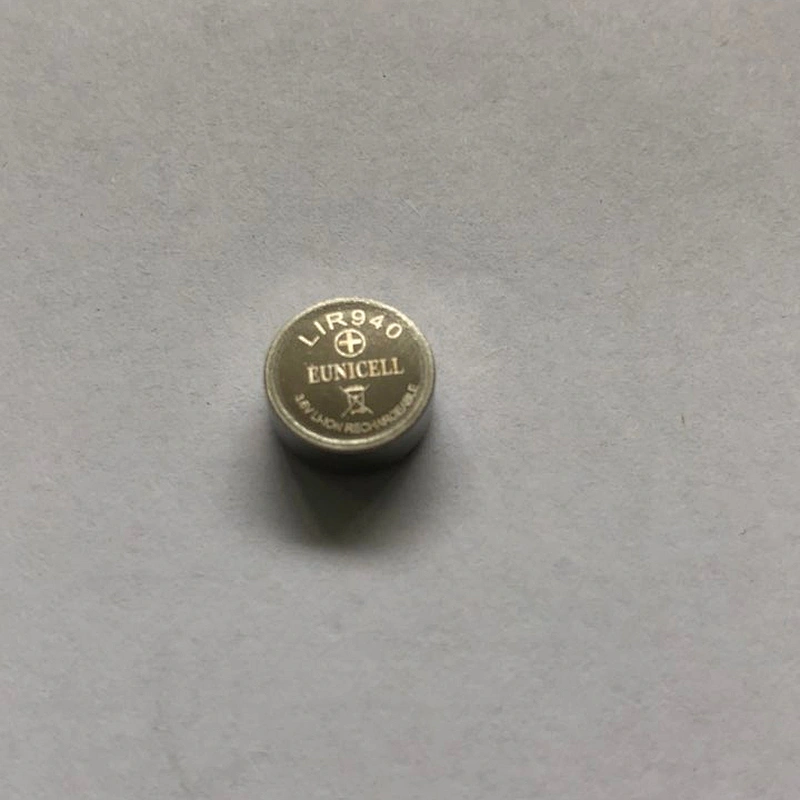

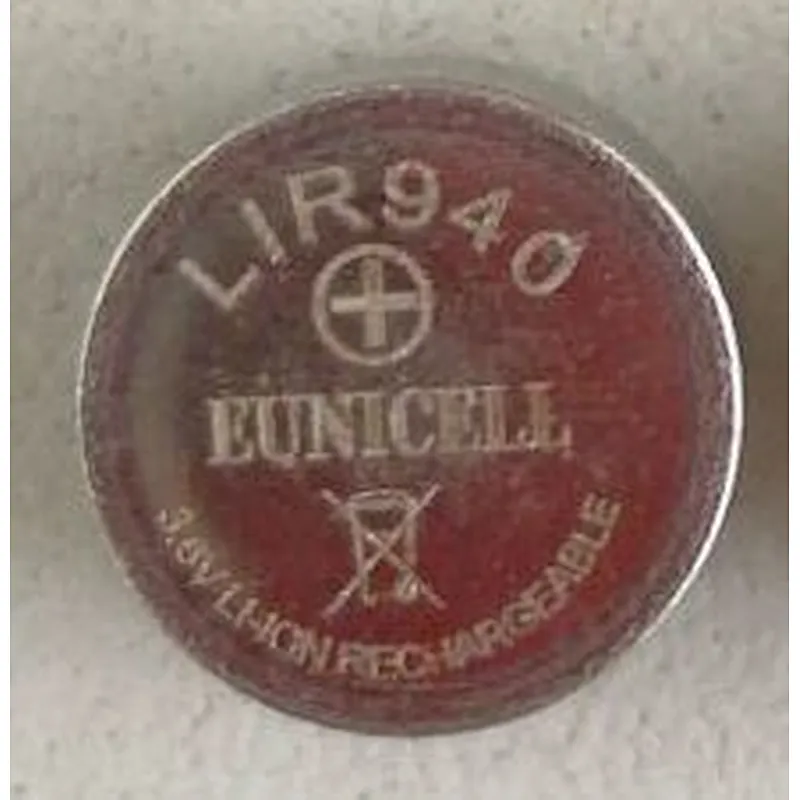

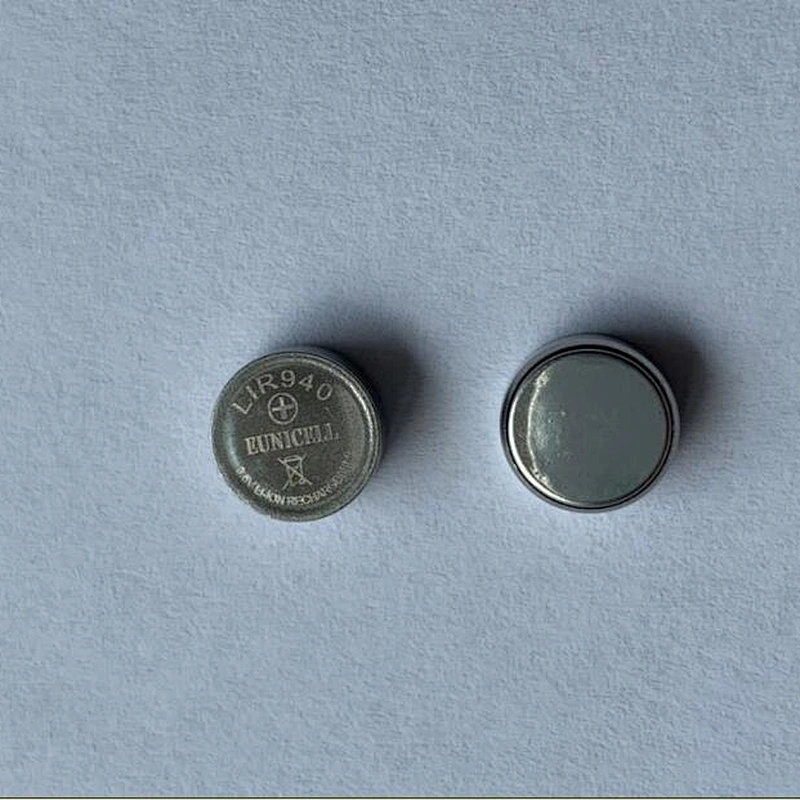

3.6V rechargeable Lithium button cell batteries LIR940 for TWS bluetooth earbuds
Model: LIR940
Nominal Voltage: 3.6V
Nominal Capacity: 25mAh
Max.Discharge Current: 1C
Dimensions φ*H(mm): 9.0*4.0
| Battey Type | 3.6V Lir940 Li-ion Coin Cell Battery |
| Brand | EUNICELL |
| Model | LIR940 |
| Size | 9.5*4mm |
| Voltage | 3.6V |
| Capacity | 20mAh |
| Cycle Life | 500times |
| Chemical System | Lithium ion button cell battery (Non-Hg, Non-Cadmium) |
| Certifications | CE ROHS SGS REACH MSDS |
| Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity. |

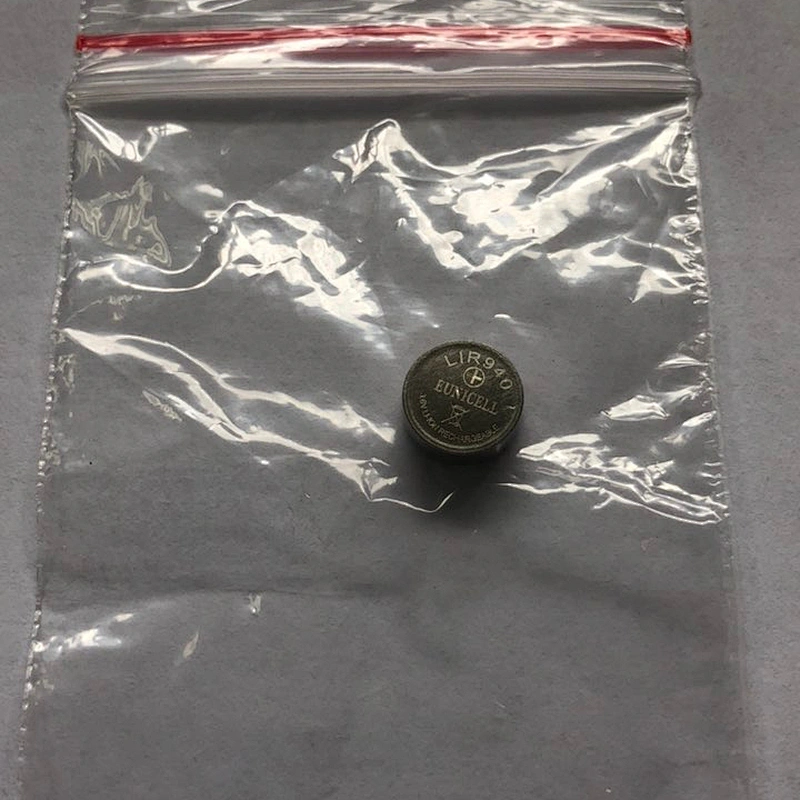

| Package | tray bulk, blister card, shrink, box, clamshell. |
| Shipping | 9-12 working days |

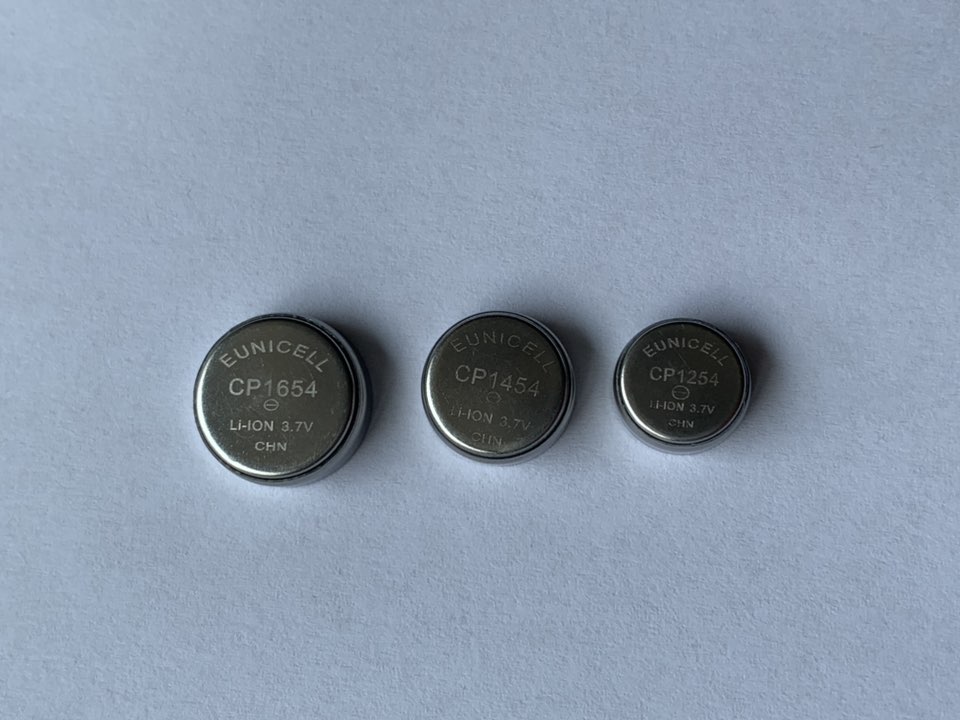

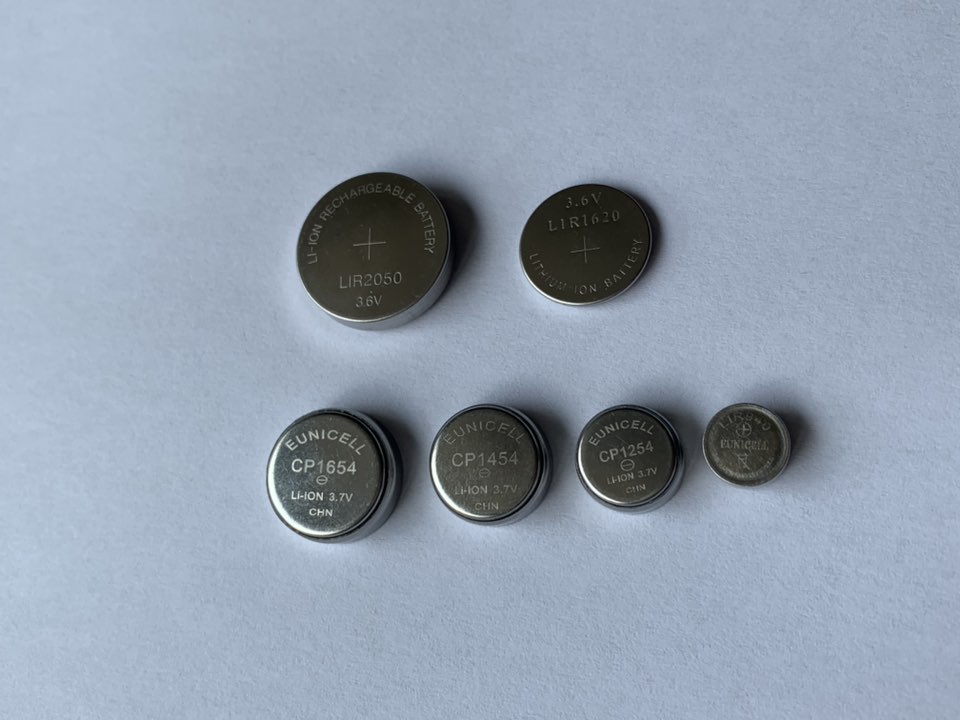

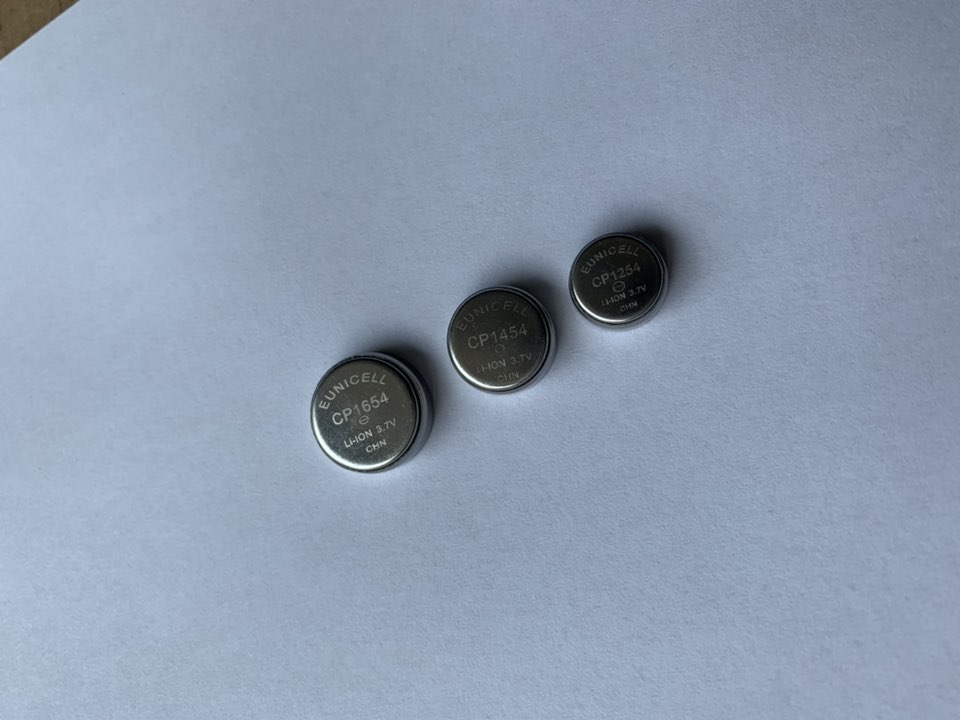

| Item | Model | Normal Voltage(V) | Normal Capacity(mAh) | Max Discharge Current(mA) | Resistance(mΩ) | Diameter(mm) | Height(mm) | Weight(g) |
1 | LIR940 | 3.6 | 25 | 1C | ≤650 | 9.0-0.1 | 4.0+0.2 | 1.0 |
| 2 | LIR1040 | 3.6 | 35 | 1C | ≤650 | 10.0-0.1 | 4.0+0.2 | 1.1 |
| 3 | LIR1054 | 3.6 | 40 | 1C | ≤600 | 10.0-0.1 | 5.4+0.2 | 1.32 |
| 4 | LIR1240 | 3.6 | 50 | 1C | ≤550 | 12.0-0.1 | 4.0+0.2 | 1.53 |
| 5 | LIR1254 | 3.6 | 65 | 1C | ≤500 | 12.0-0.1 | 5.4+0.2 | 1.8 |
| 6 | LIR1454 | 3.6 | 90 | 1C | ≤450 | 14.0-0.1 | 5.4+0.2 | 2.5 |
| 7 | LIR1654 | 3.6 | 120 | 1C | ≤400 | 16.0-0.1 | 5.4+0.2 | 3.4 |
