- Battery type:TWS Rechargeable Li-ion
- Nominal Voltage:3.6V
- Capacity:40mAh
- Warranty:12 Months
- Rechargeable:Rechargeable
- OEM/ODM:Accepatable
- Shipping:UPS DHL Fedex TNT Sea
- Connector:Customer's Pointed
- Shape:Cylindrical
- Cycle life:500 Times
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Application:Remote control
- Place of Origin:CN;GUA

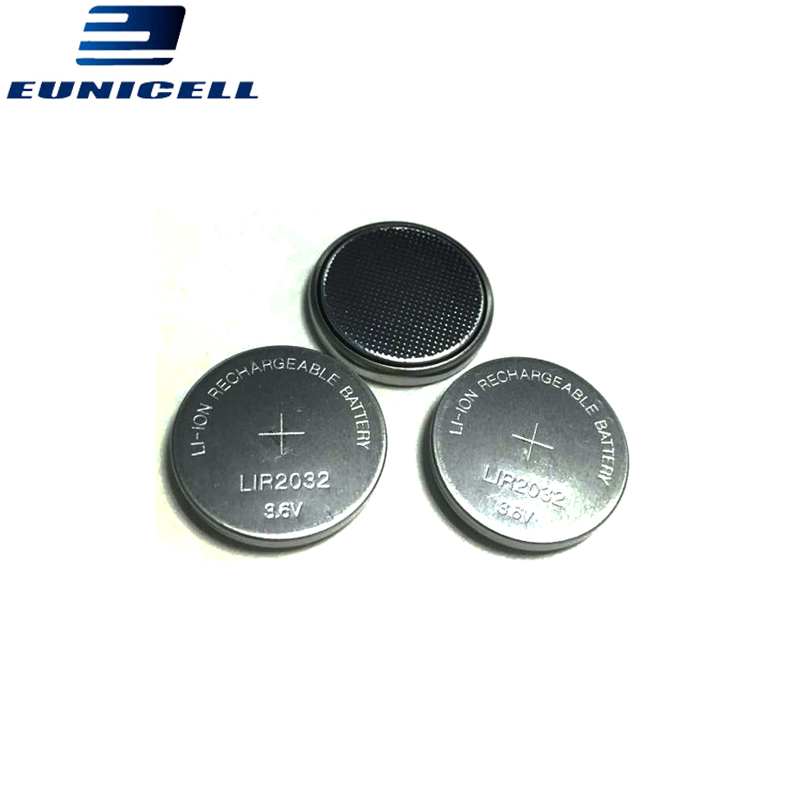

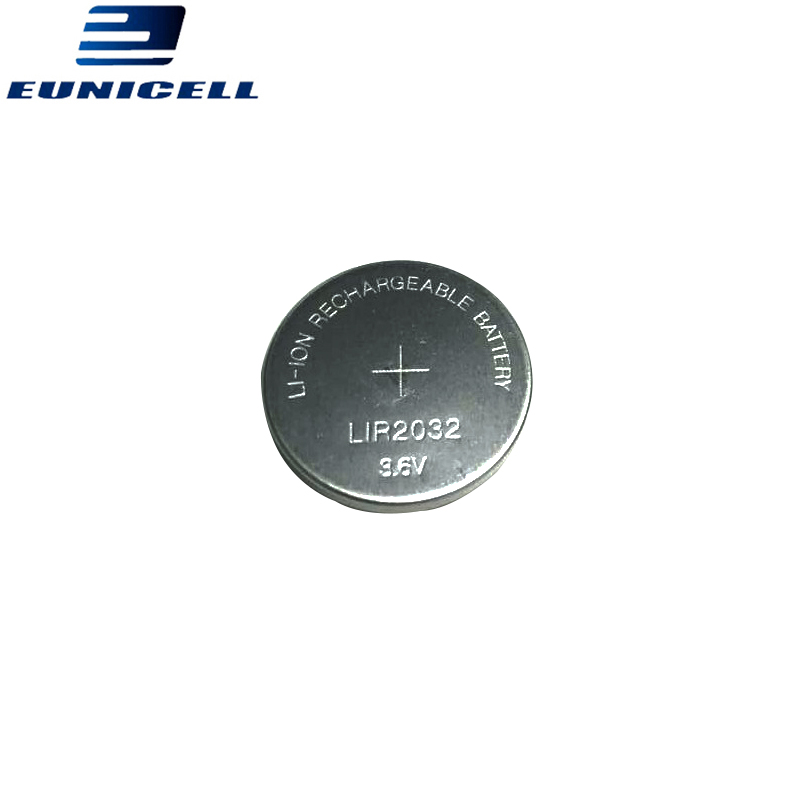

- Battery Size:lir2032 CR2032 Rechargeable
- Brand Name:Eunicell
- Certification:CE,MSDS,UN38.3
- Model Number:LIR2032/CR2032/BR2032
- Weight:2.7g

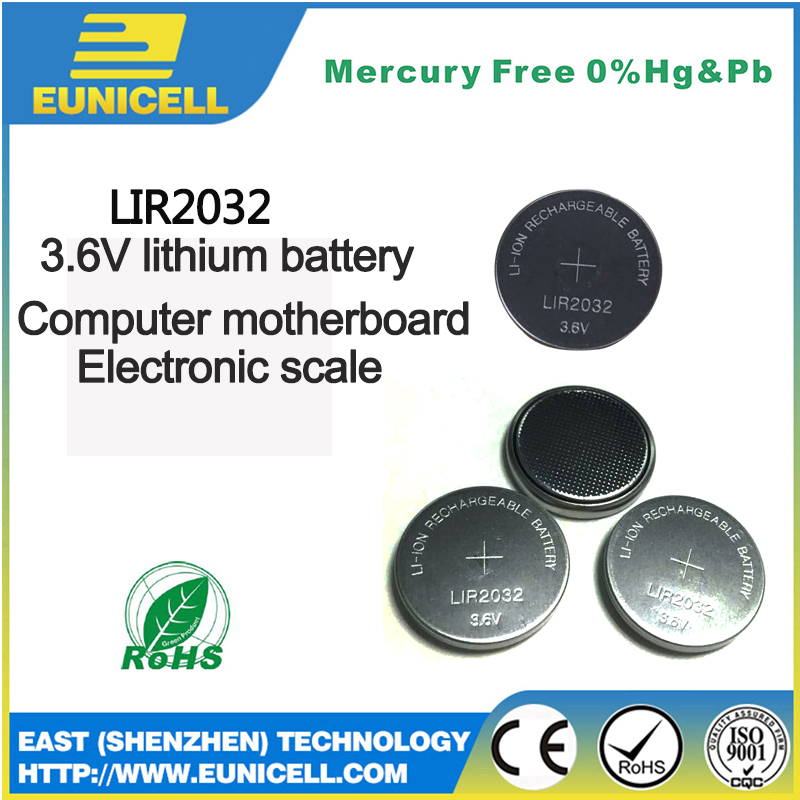

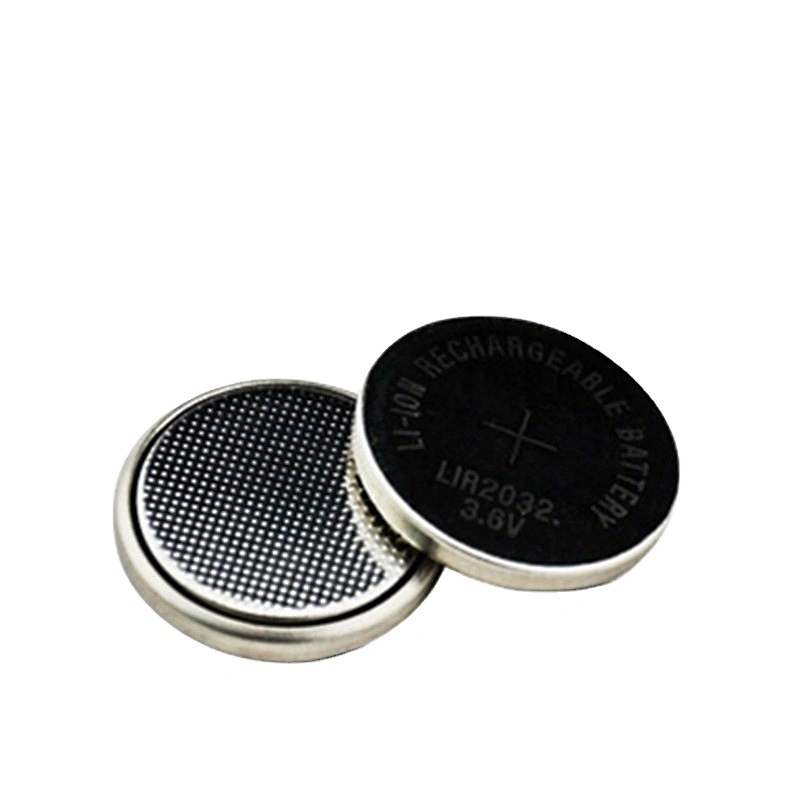

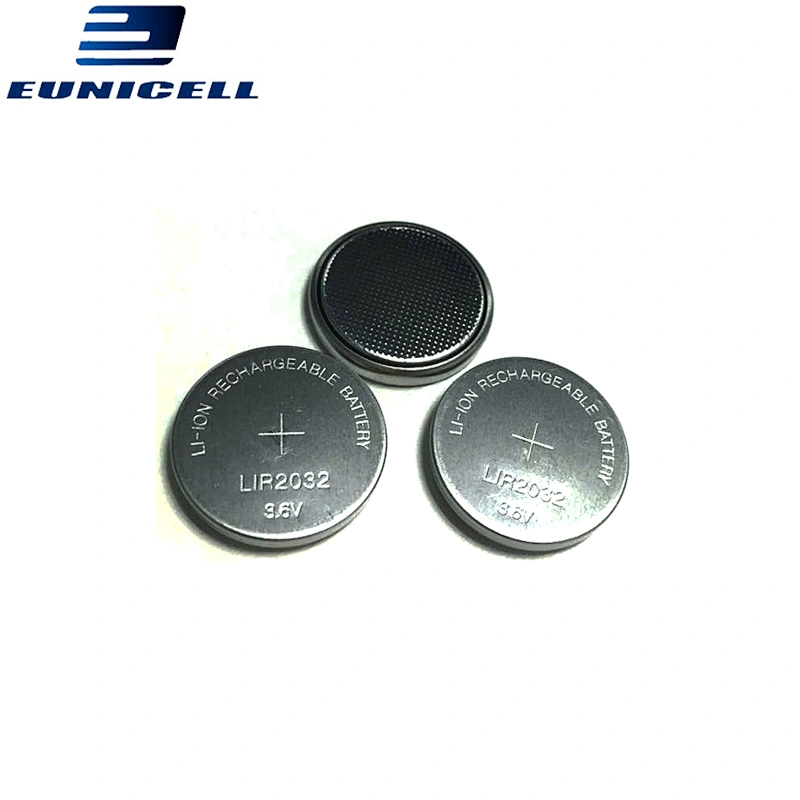

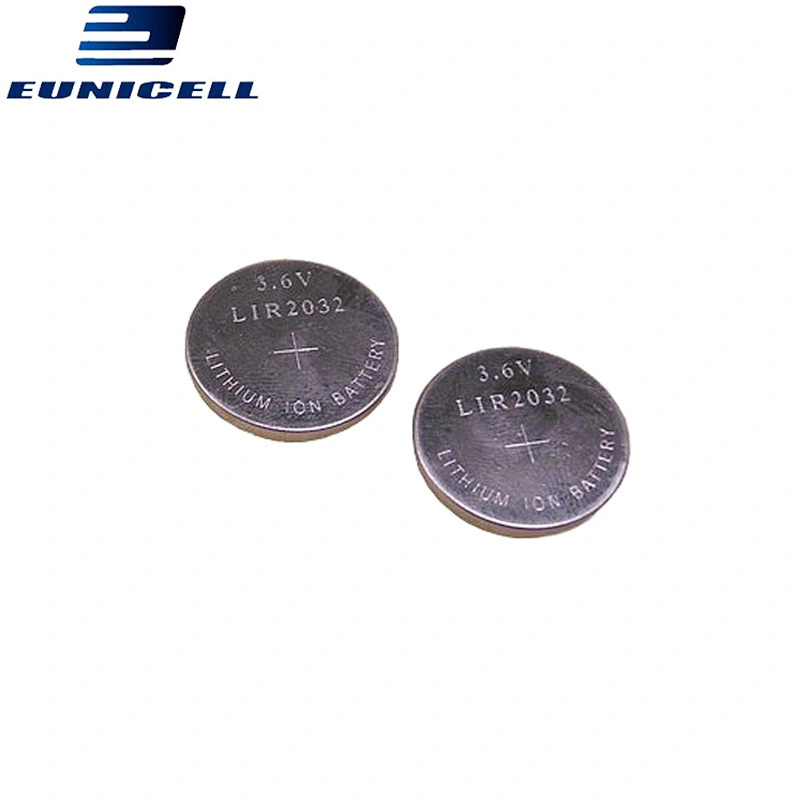

Model | LIR2032 |
Nominal voltage | 3.6V |
Nominal capacity | 60±5mAh |
Recommended continuous | 1CmA |
Recommended pulse drain | 2CmA |
Diameter | 20.0mm |
Height | 3.2mm |
Weight | 3.0 ±0.2g |
Computer motherboards, electronic watches, electronic dictionaries, electronic scales, memory card, remote control, electric toys, pacemakers, electronic hearing aids, counters, cameras and more
| NAME NOMINAL NOMINAL RESISTANCE DIAMETER HEIGHT EACH PIECE VOLTAGE (V) CAPACITY(mAh) (mΩ) MAX.SIZE (mm) SIZE (mm) WEIGHT(g) |
LIR940 | 3.6V | 25 | ≤ 650 | 9.0_0.2 | 4.0±0.2 | 1.0 |
LIR1025 | 3.6V | 6±3 | ≤ 2500 | 10.0_0.2 | 2.5±0.2 | 0.5 |
LIR1040 | 3.6V | 35 | ≤ 650 | 10.0_0.2 | 4.0±0.2 | 1.1 |
LIR1054 | 3.6V | 40 | ≤ 600 | 10.0_0.2 | 5.4±0.2 | 1.32 |
LIR1220 | 3.6V | 8±3 | ≤ 2000 | 12.5_0.2 | 2.0±0.2 | 0.7 |
LIR1254 | 3.6V | 65 | ≤ 1200 | 12.0_0.2 | 5.4±0.2 | 1.70 |
LIR1240 | 3.6V | 50 | ≤ 550 | 12.0_0.2 | 4.0±0.2 | 1.53 |
LIR1454 | 3.6V | 90 | ≤ 450 | 14.0_0.2 | 5.4±0.2 | 2.50 |
LIR1620 | 3.6V | 16±3 | ≤ 2000 | 16.0_0.2 | 2.0±0.2 | 1.10 |
LIR1654 | 3.6V | 120±5 | ≤ 400 | 16.0_0.2 | 5.4±0.2 | 3.40 |
LIR1654 High capacity | 3.6V | 90±5 | ≤ 1200 | 16.0_0.2 | 5.4±0.2 | 2.8 |
LIR2016 | 3.6V | 18±2 | ≤ 2000 | 20.0_0.2 | 1.6±0.2 | 1.5 |
LIR2025 | 3.6V | 25±5 | ≤ 2000 | 20.0_0.2 | 2.5±0.2 | 2.3 |
LIR2032 | 3.6V | 40±5 | ≤ 600 | 20.0_0.2 | 3.2±0.2 | 2.7 |
LIR2050 | 3.6V | 80±5 | ≤ 600 | 20.0_0.2 | 5.0±0.2 | 3.8 |
LIR2430 | 3.6V | 60±5 | ≤ 500 | 24.5_0.2 | 3.0±0.2 | 3.8 |
LIR2430 High capacity | 3.6V | 100±5 | ≤ 4600 | 24.5_0.2 | 3.0±0.2 | 4.5 |
LIR2450 | 3.6V | 120±10 | ≤ 400 | 24.5_0.2 | 5.0±0.2 | 5.6 |
LIR2477 | 3.6V | 200±10 | ≤ 400 | 24.5_0.2 | 7.7±0.2 | 7.5 |
LIR3032 | 3.6V | 120±10 | ≤ 400 | 30.0_0.2 | 3.2±0.2 | 6.2 |
LIR3048 | 3.6V | 180±10 | ≤ 300 | 30.0_0.2 | 4.8±0.2 | 7.3 |
LIR103035 | 3.6V | 60±5 | ≤ 1200 | 10*30*3.5 | 2.7 | |
FAQ
| • Could you do customer brand? |
• Of course,we could provide professional OEM service.

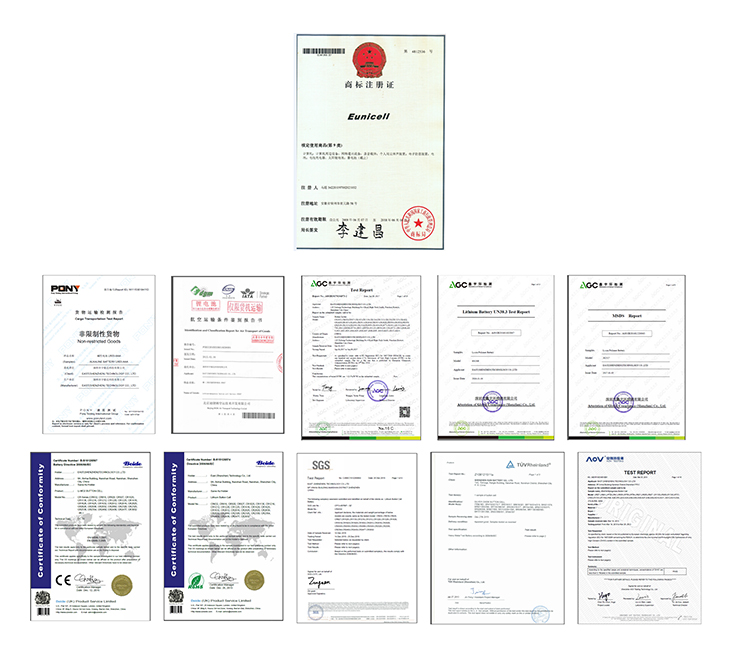

| • Does your batteries have a certificate? |
• Yes.our batteries got CE/SGS/UL/Rohs cetificate.
| • What is your payment term? |
• We provide T/T,Western Union,Paypal
| • Can I get free sample? |
• Yes,we can send free sample to you,not including freight
| • How to contact us? |
• Send your inquiry or click"Buy now"!
