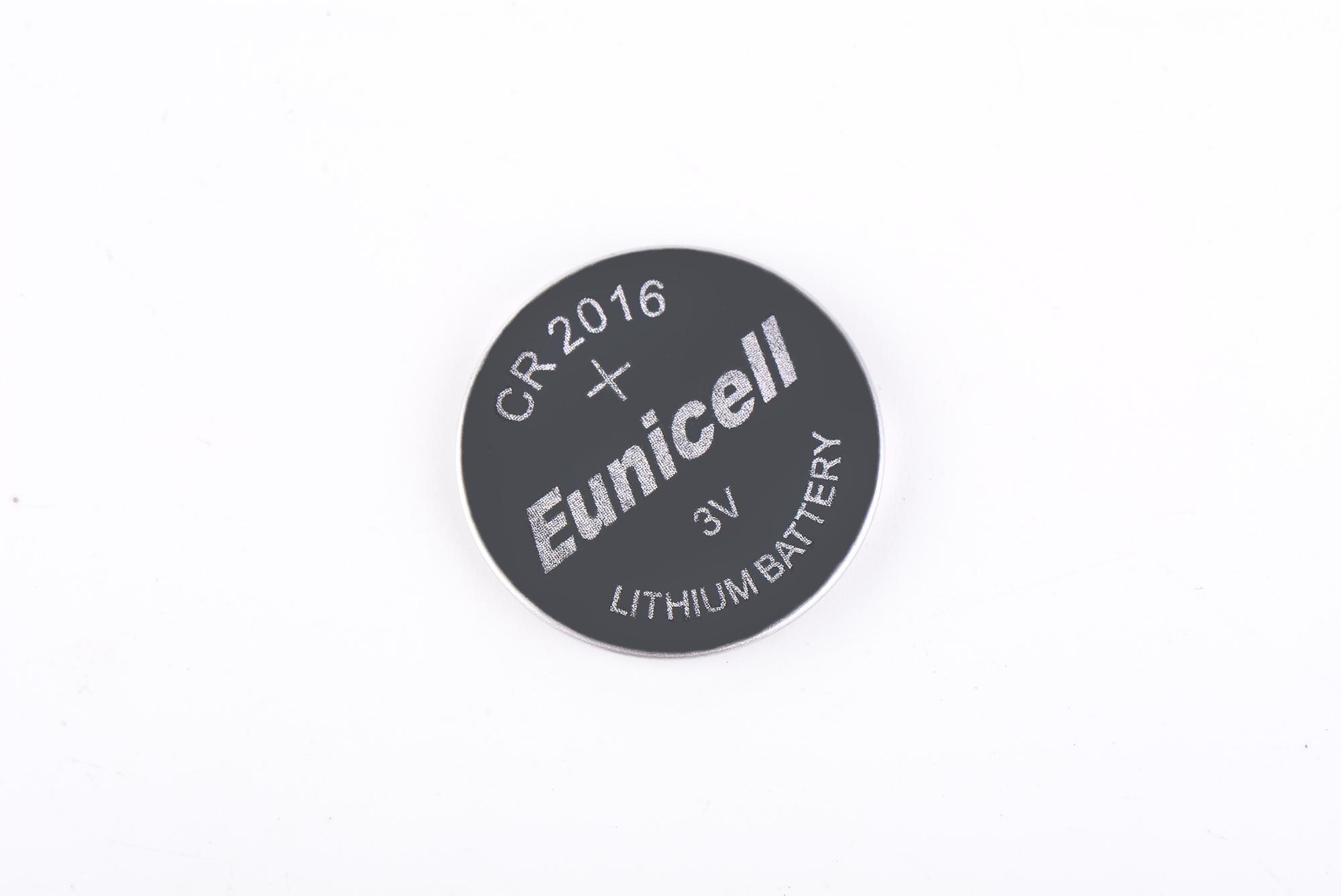

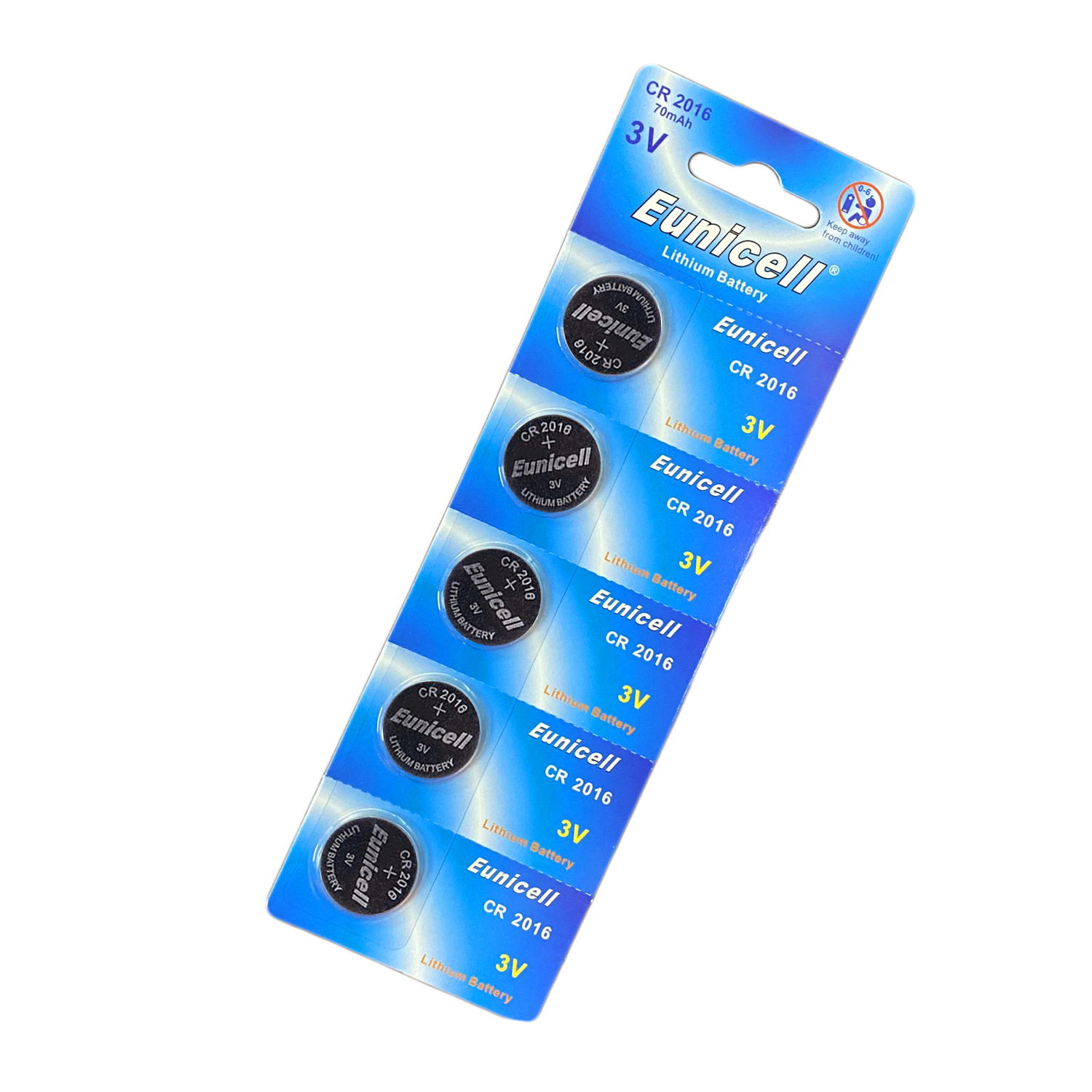

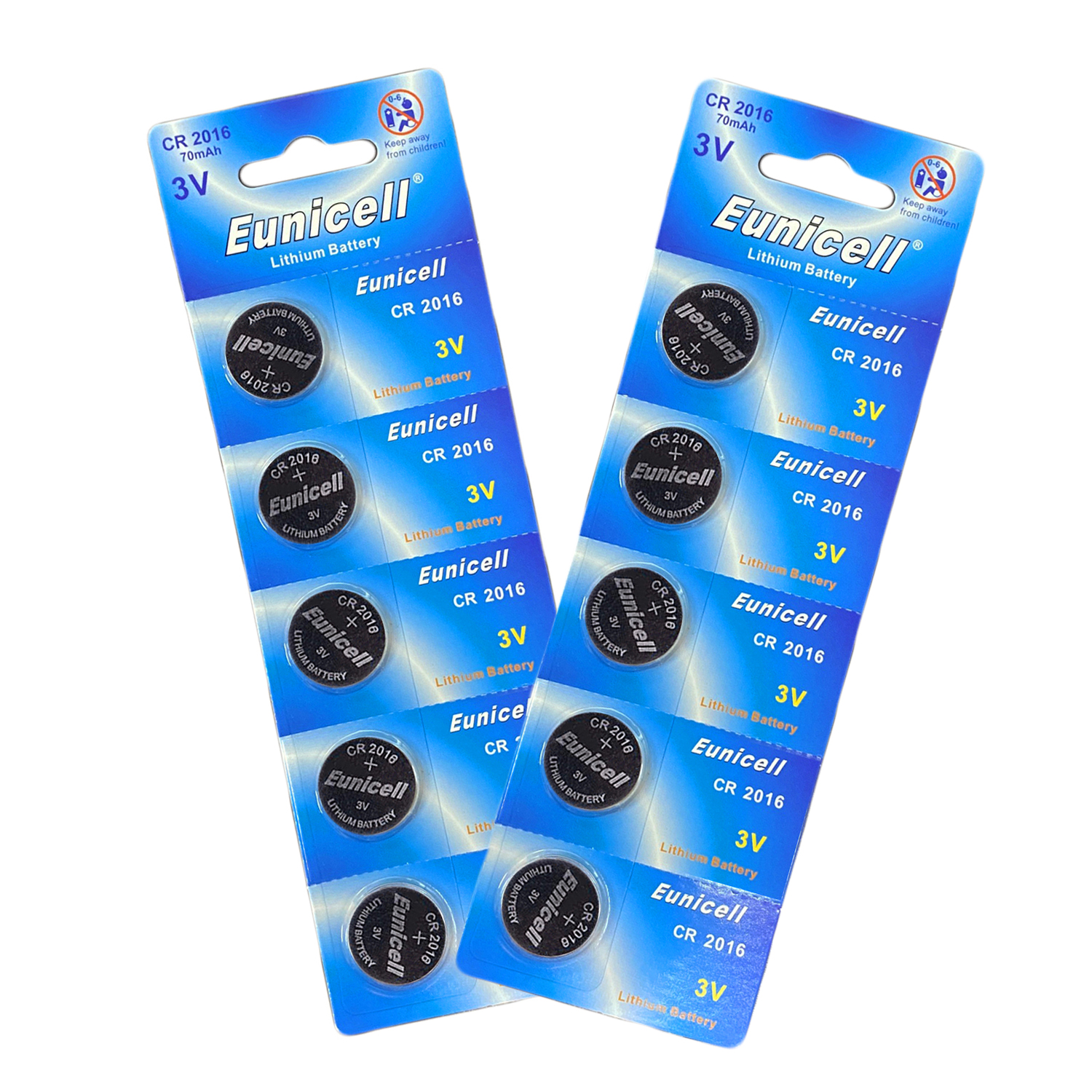

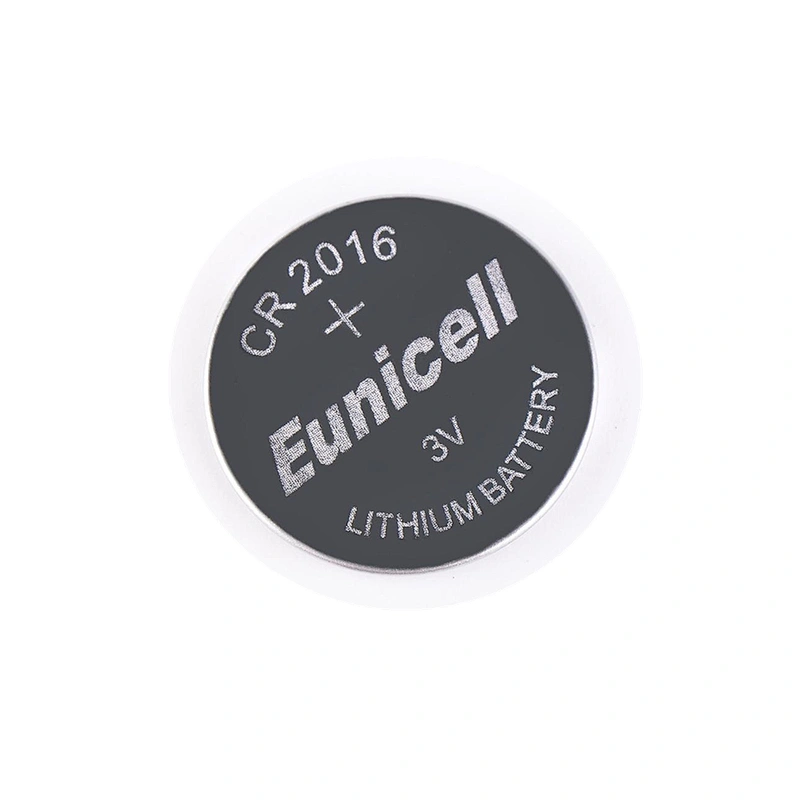

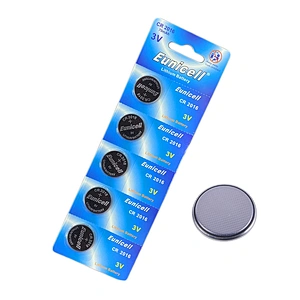

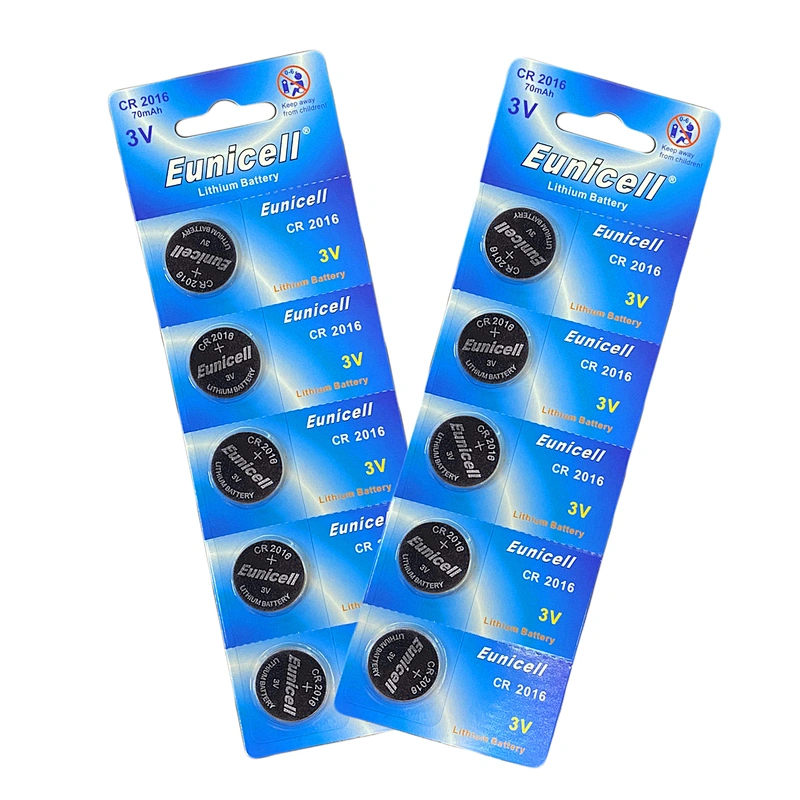

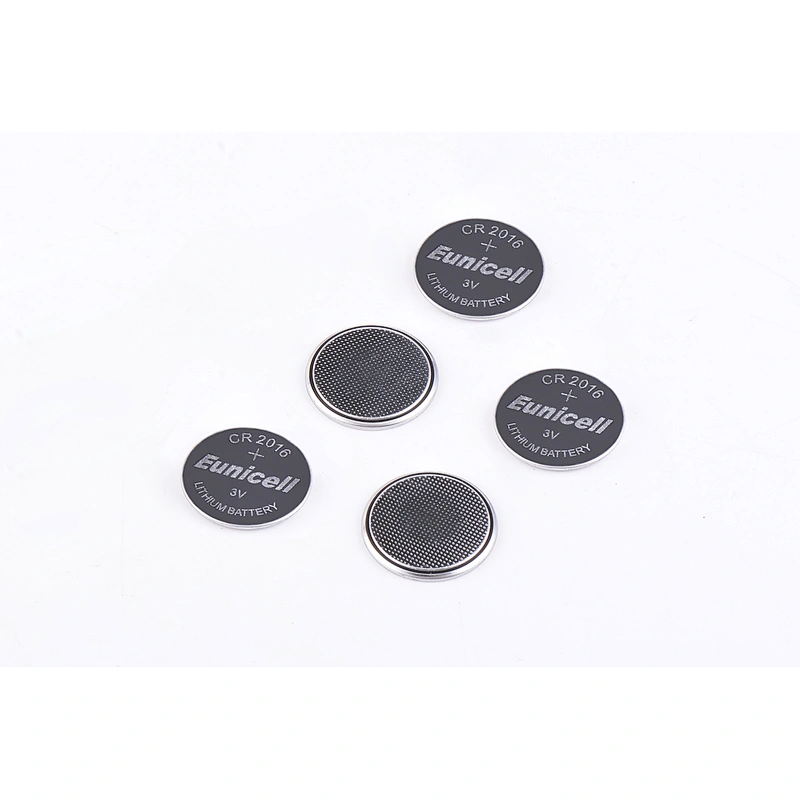

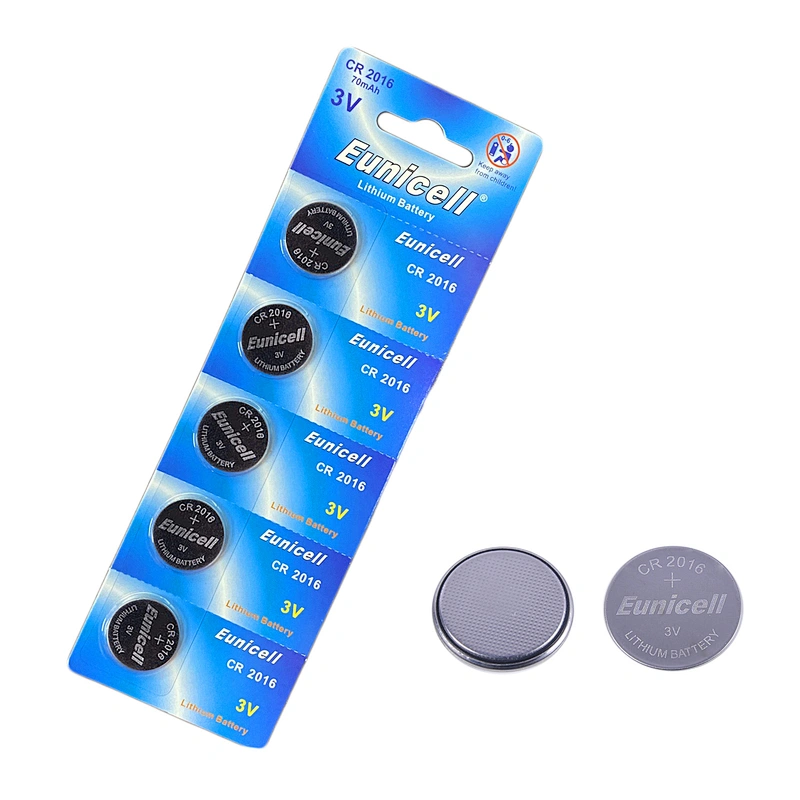

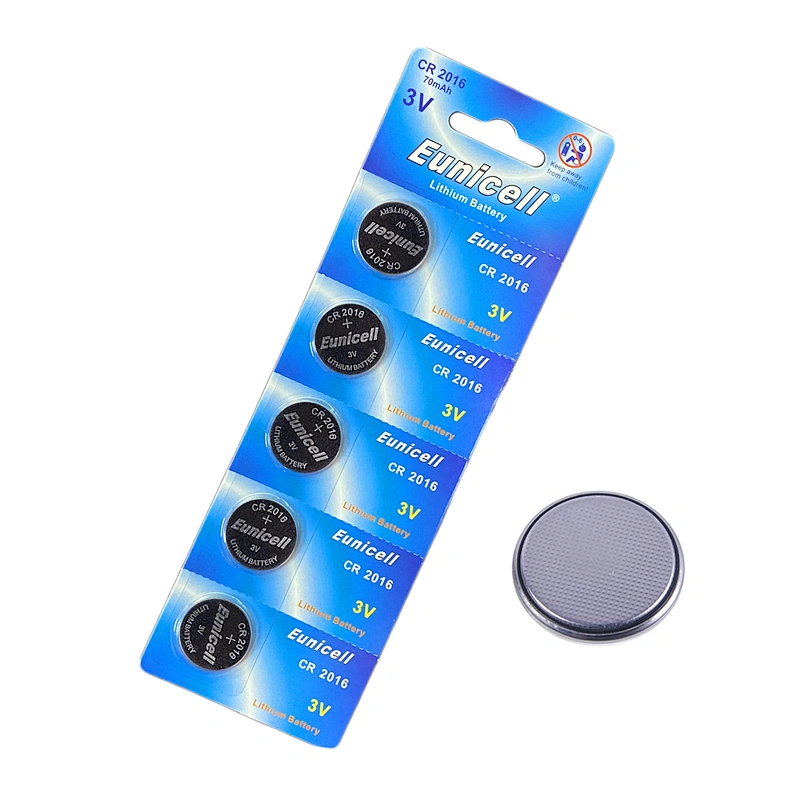

Each Card 5pcs Watch Cell Battery Baterias CR2016 3.0V
Brand
Eunicell
(ODM&OEM are acceptable)
Model
CR2016
Battery Type
Manganese dioxide Lithium Battery
Nominal Voltage
3.0 volts
Nominal Capacity
75mAh
(Load: 3.0K ohms, End voltage 2.0V)

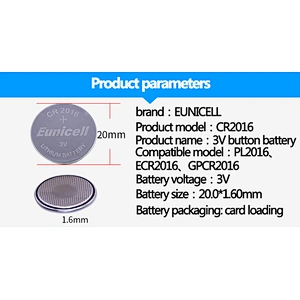

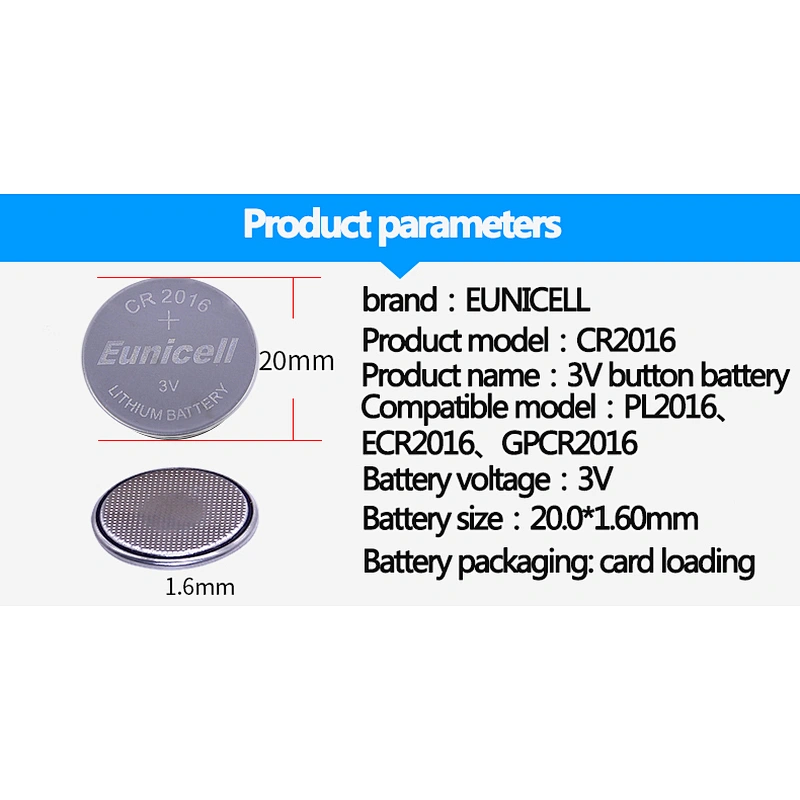

Outside Dimensions
D 20mm * H 1.6mm
Weight
1.75 g
Instantaneous Short-cut Circuit
≥300mA
Off-Load Voltage
≥3.20V
Storage Temperature
0~40℃
Appropriated Temperature
-20~60℃
Discharge Life
≤3%/yr
Disposable
Yes
Rechargeable
No
Quick Test Use Of Life
Initial: ≥75H
After 12 months: ≥73.5H
Guarantee
1 year (at the temperature of less than 25 deg. C and the relative humidity of less than 75%RH.)
Appearance
Will be free from flaw, stain, deformation, uneven tone, electrolyte leakage and other defects which impair the value of the commodity.
Product performance description
1.12 months quality warranty. 2. Ultra environmental friendly button cell battery. 3. Long working time. 4. Made from high-quality materials. 5. Excellent performance. 6. Multi-applicable. 7. Excellent storage performance and low self-discharge rate. 8. Excellent safety performance. 9.MSDS / RoHS / SGS / CEcertificate 10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
Product Usage
Product usage introduction

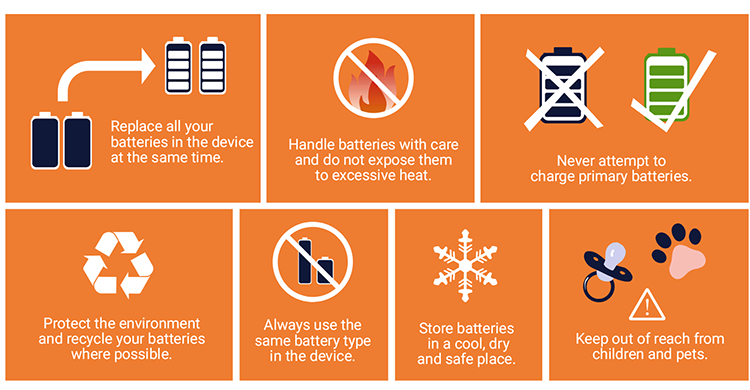

Warning:
1. Keep separated in a tray and cool place. 2. Do not throw in fire. Do not throw then into a dustbin. 3. Keep clean, wipe the cell with dry cloth. 4. Keep out of the reach of the chidren. If swallowed, visit a doctor. 5. Not rechargeable, remove when fully drained. 6. Connect + to - Correctly.

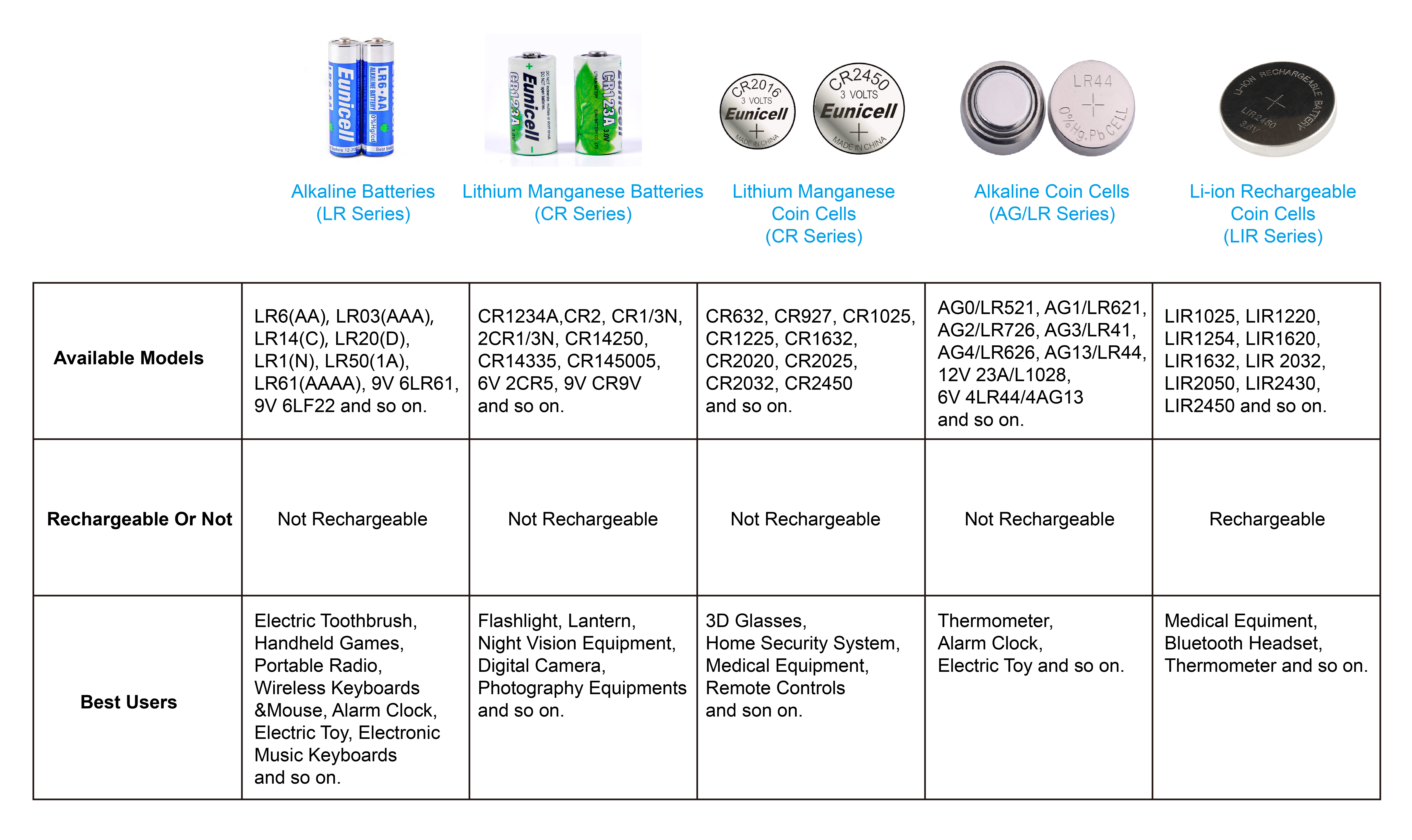

Related Products
Technical Data Sheet
MODEL
NOMINAL VOLTAGE(V)
MAX.SIZE
NOMINAL CAPACITY (mAh)
SUGGESTED OPERATION CURRENT
WEIGHT (g)
NOMINAL VOLTAGE(V)
DIAMETER MAX.SIZE (mm)
HEIGHT MAX.SIZE (mm)
NOMINAL CAPACITY (mAh)
STANDARD CURRENT (mA)
MAX. CURRENT (mA)
CONTINUOUS CURRENT (mA)
EACH PIECE WEIGHT (g)
CR632
3.0V
6.8
3.2
15
0.03
3
1
0.2
CR927
3.0V
9.5
2.7
30
0.05
5
1
0.6
CR1025
3.0V
10
2.5
30
0.05
5
1
0.6
CR1130
3.0V
11.6
3
40
0.05
5
1
0.9
CR1216
3.0V
12.5
1.6
25
0.05
5
1
0.7
CR1220
3.0V
12.5
2
40
0.05
5
1
0.85
CR1225
3.0V
12.5
2.5
48
0.1
5
1
1.3
CR1616
3.0V
16
1.6
50
0.1
8
1
1.15
CR1620
3.0V
16
2
70
0.1
8
2
1.2
CR1625
3.0V
16
2.5
90
0.1
8
2
1.4
CR1632
3.0V
16
3.2
120
0.2
10
2
2.4
CR2020
3.0V
20
2
115
0.2
15
2
2.1
CR2016
3.0V
20
1.6
75
0.2
15
2
1.75
CR2025
3.0V
20
2.5
150
0.2
15
3
2.4
CR2032
3.0V
20
3.2
210
0.2
15
5
2.9
CR2050
3.0V
20
5
300
0.4
20
3
3
CR2320
3.0V
23
2
150
0.2
18
8
2.9
CR2325
3.0V
23
2.5
210
0.2
18
8
3.5
CR2330
3.0V
23
3
250
0.2
18
8
4
CR2354
3.0V
23
5.4
480
0.2
18
8
6
CR2412
3.0V
24.5
1.24
100
10
2.1
CR2430
3.0V
24.5
3
275
0.2
18
10
4.5
CR2450
3.0V
24.5
5
540
0.4
18
13
6.2
CR2477
3.0V
24.5
7.7
1050
0.5
20
13
8.7
CR3032
3.0V
30
3.2
580
0.5
20
13
8

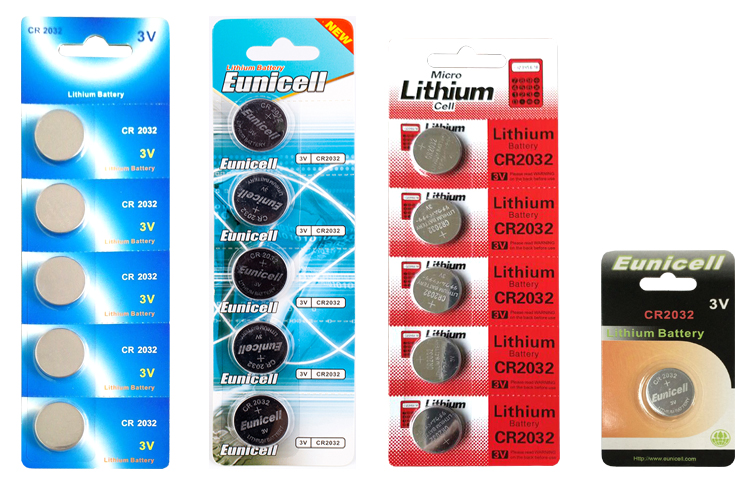

Packing&Shipping

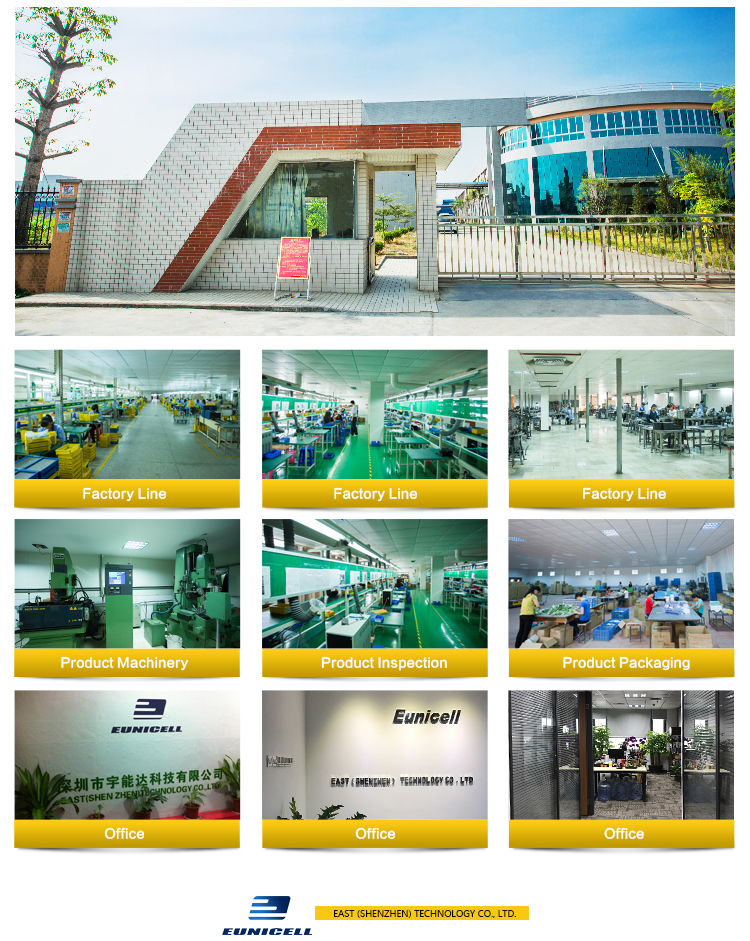

Company Introduction
FAQ
Q: Can I do OEM? A: Sure! OEM are welcome. Q:Can I get a lower price if I order large quantities? A: Yes. More quantity, cheaper prices. Q: How long is delivery time? A: 2-7 days after deposit received if use our package. OEM will be need 14-20 days.
Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support. Q: Can you print my logo on the battery cover? A: Yes, custom logo service and branding is available. Q: Is sample order acceptable? A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable. Q: How should I place an order? A: Alibaba trade assurance order and offline orders are both acceptable. Q: How should I pay? What modes of payment do you accept? A: T/T, Paypal, Western Union & Trading Assurance acceptable. Q: Are renowned international brand battery cells available? A: Yes international brand cells are available, please contact us for details. Q: How do you arrange shipment for batteries? A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s). Q: Do you have the documents(Certification) required for battery shipments? A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
