Replacements:LR1, N, N SIZE, MN9100, R1, 910A, 910D, HR1, KR1
Jacket:Aluminum Foil
Chemical Analysis:Hg & Pb & Cd Free
Discharge Time:7.8 HRS At 10Ω
Rechargeable:Non Rechargeable
Shelf Life:More Than 5 Years
Sample:Provided Freely
Package:Shrink Wrapped / Blister Card
OEM & ODM:Yes (Accepted OEM&ODM)
Application:Toys
Application:Power Tools
Application:Home Appliances
Application:Consumer Electronics
Application:Medical Equipment
Shape:Cylindrical
Place of Origin:CN;GUA
Battery Size:D 12mm * H 30.2mm
Brand Name:Eunicell or OEM
Certification:MSDS / RoHS / SGS / CE / Reach
Model Number:LR1, N size, AM5
Weight:9.5 g

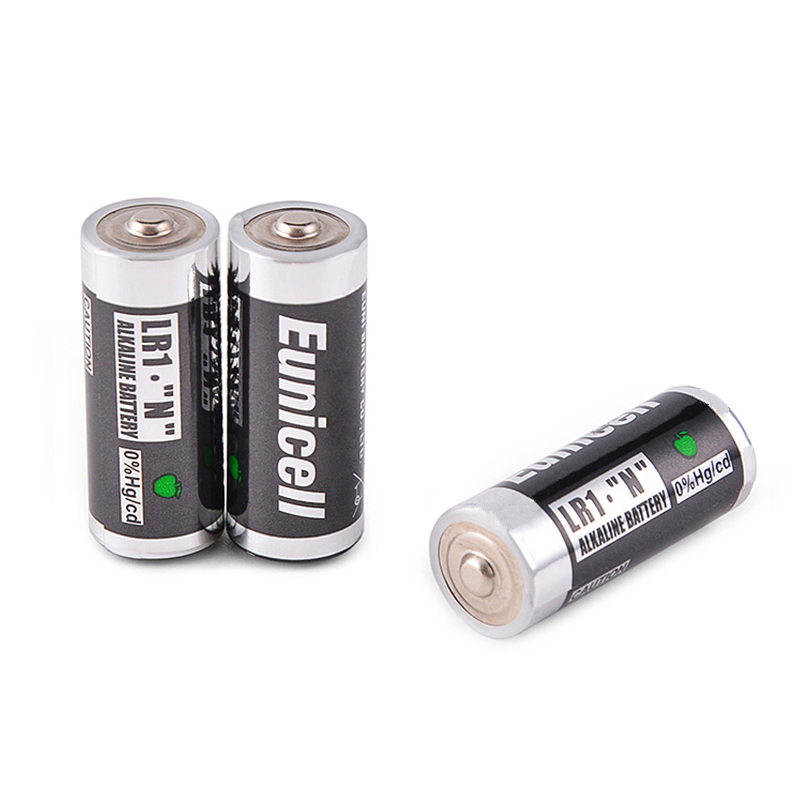

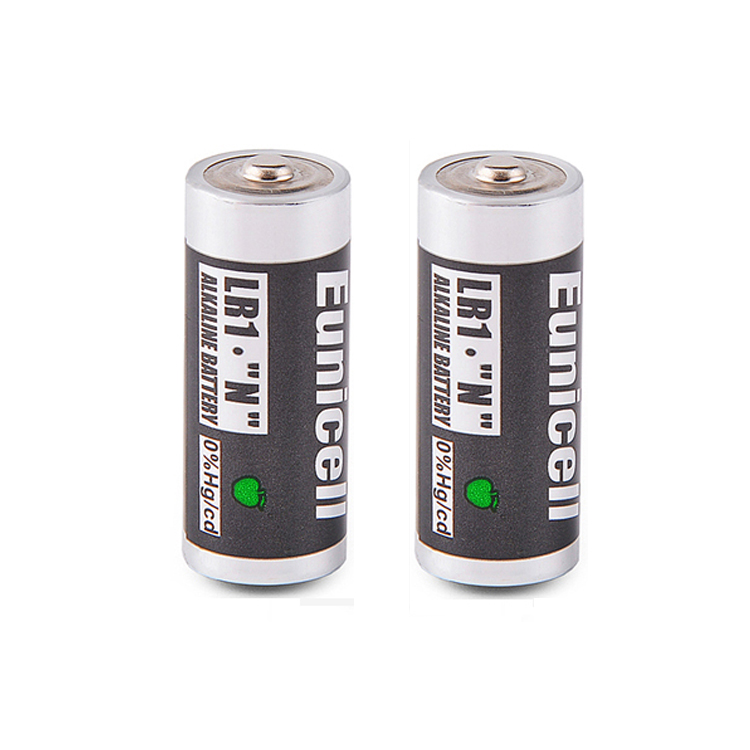

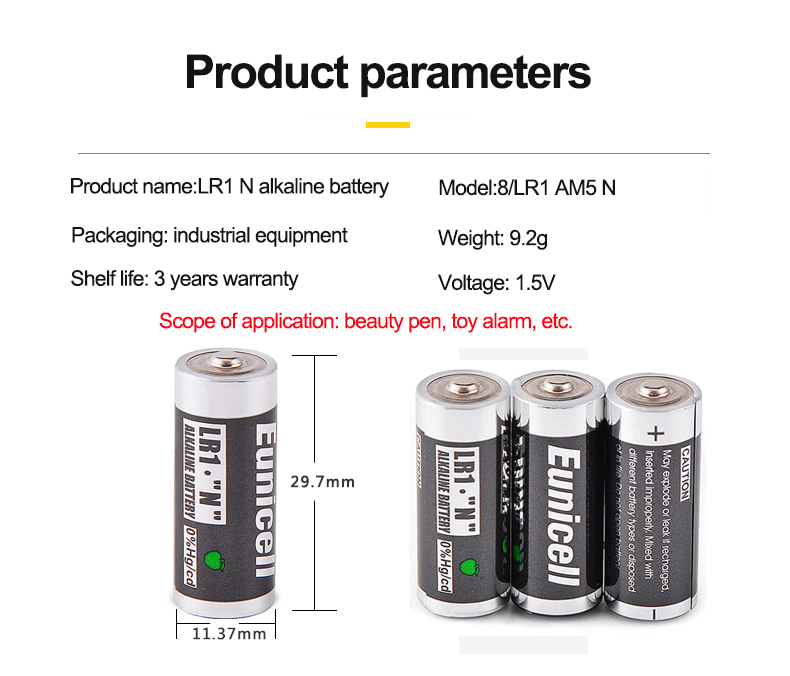

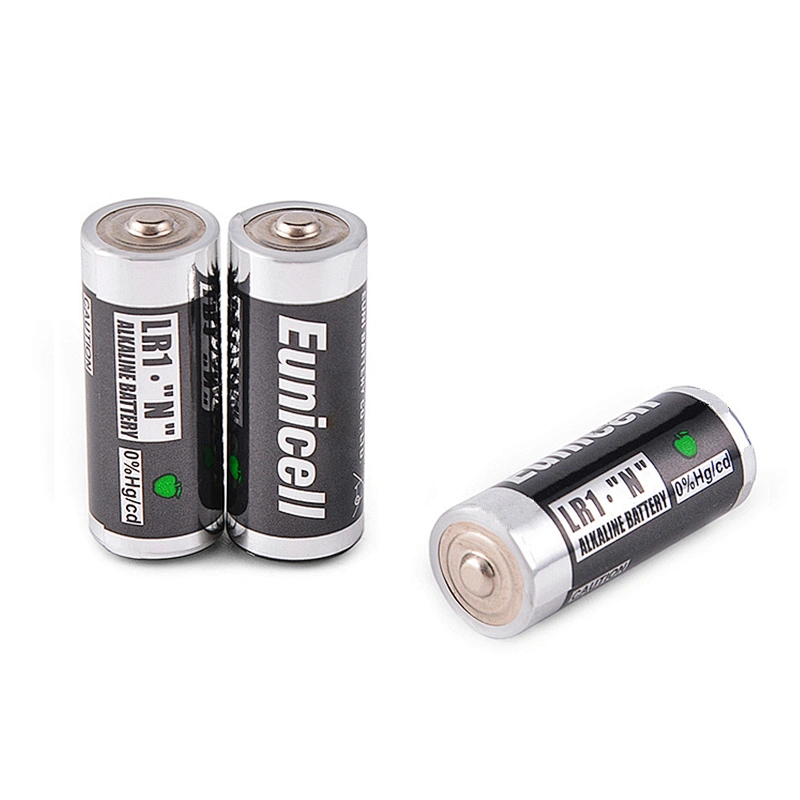

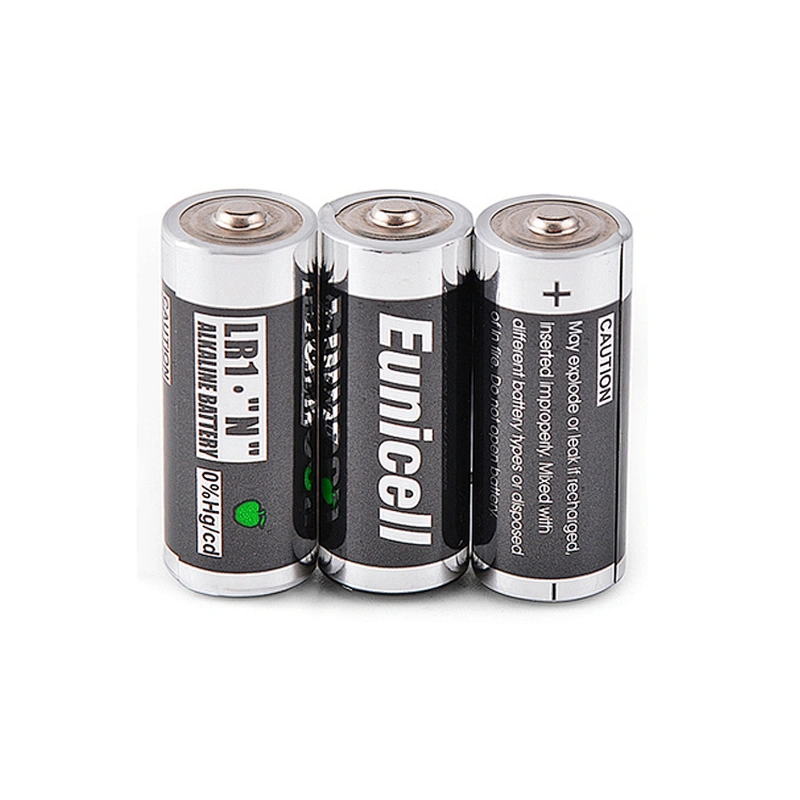

Product Description
N Type LR6 LR03 AA AAA 23A 27A CR123A LR1 N Alkaline Batteries From China
Brand
Eunicell
(ODM&OEM are acceptable)
Model
LR1 (SIZE N)
Replacements
LR1, N, N SIZE, MN9100, R1, 910A, 910D, HR1, KR1
Battery Type
Manganese dioxide Alkaline Battery
Jacket
Aluminum Foil
Nominal Voltage
1.5 volts
Nominal Capacity
450mAh
Outside Dimensions
D 12mm * H 30.2mm
Weight
9.5g
Open Circuit Voltage
1.6~1.63V
Discharge Time
7.8 HRS At 10Ω
Chemical System
Alkaline Battery (Non-Hg, Non-Pb, Non-Cd)
Shelf Life
≥ 5 years
Disposable
Yes
Rechargeable
No
Storage Performance
After 12 months storage at specified conditions, discharge capacity should not be less than 80% of the original discharge capacity.
Certification
CE ROHS SGS MSDS
Guarantee
3 year (at the temperature of less than 25 deg. C and the relative humidity of less than 75%RH.)
Appearance
Will be free from flaw, stain, deformation, uneven tone, electrolyte leakage and other defects which impair the value of the commodity.
Product performance description
1.36 months quality warranty. 2. Ultra environmental friendly button cell battery. 3. Long working time. 4. Made from high-quality materials. 5. Excellent performance. 6. Multi-applicable. 7. Excellent storage performance and low self-discharge rate. 8. Excellent safety performance. 9.MSDS / RoHS / SGS / CEcertificate 10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
Product Usage

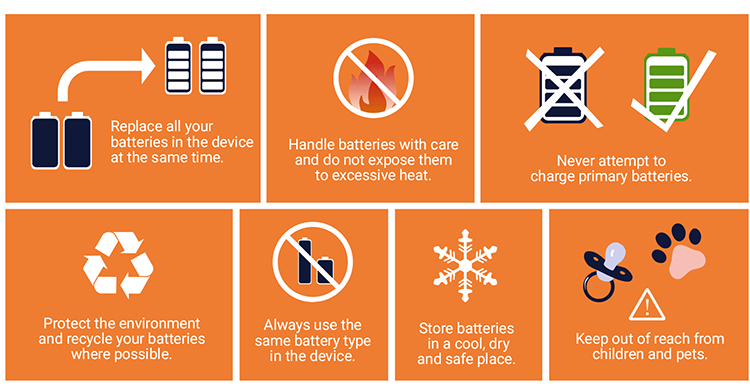

Warning:
1. Keep separated in a tray and cool place.
2. Do not throw in fire. Do not throw then into a dustbin. 3. Keep clean, wipe the cell with dry cloth. 4. Keep out of the reach of the chidren. If swallowed, visit a doctor. 5. Not rechargeable, remove when fully drained. 6. Connect + to - Correctly.

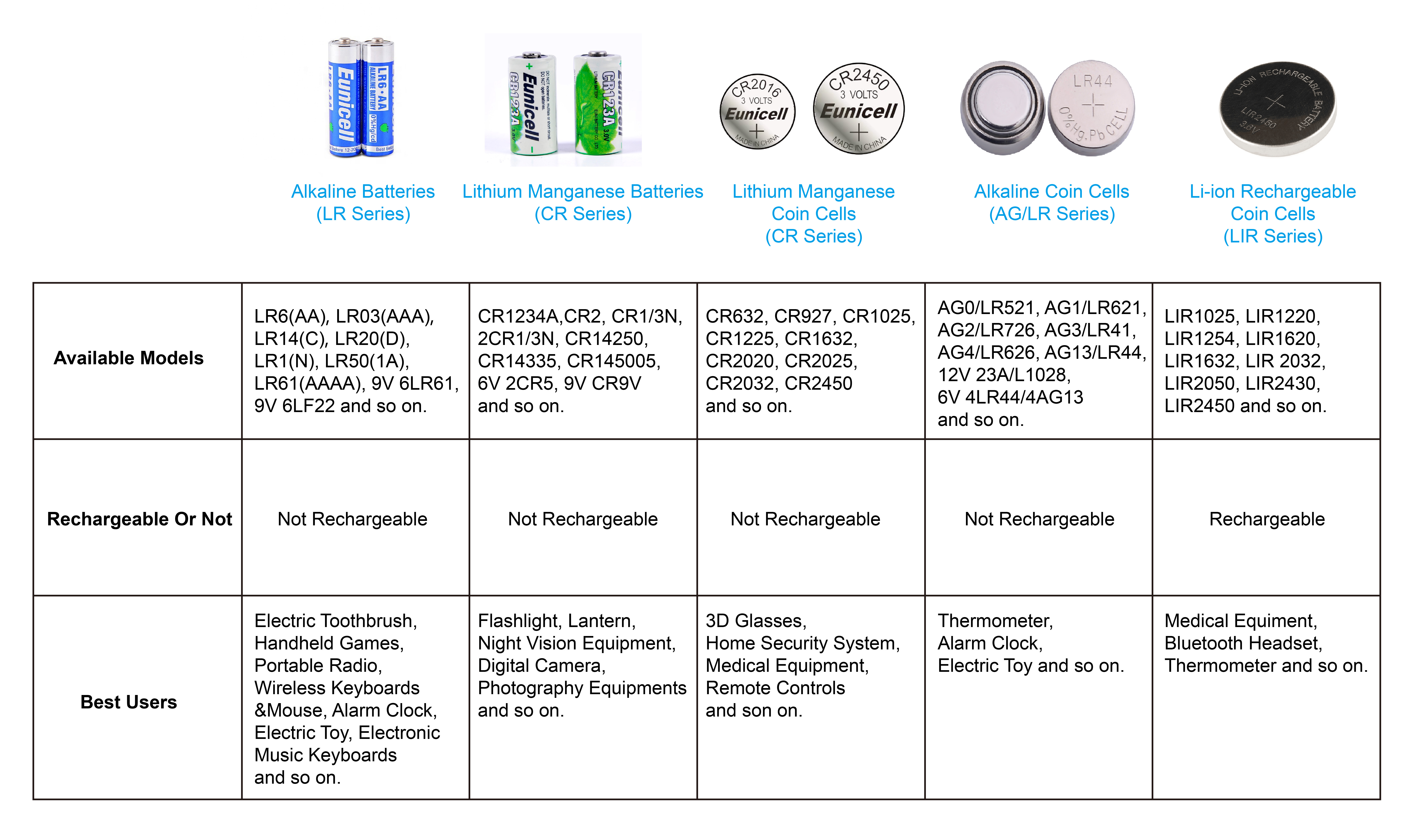

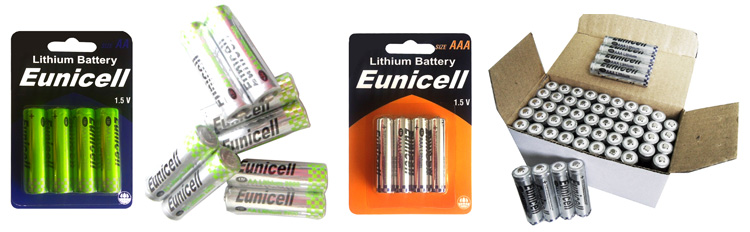

Related Products
Technical Data Sheet
Model
Nominal Voltage (V)
Max.Size
Weight
(g)
Discharge At(20±2ºC)
Diameter (mm)
Height (mm)
Weight (g)
Resistance
Discharge Time
LR20
(SIZE D)
1.5V
34.2
61.5
140
Discharge At 2Ω continuously
and end at 0.9V
9 HRS
LR14
(SIZE C)
1.5V
26.2
50
68
Discharge At 3.9Ω continuously
and end at 0.9V
11 HRS
LR6
(SIZE AA)
1.5V
14.5
50.5
23.3±0.5
Discharge At 10Ω continuously
and end at 0.9V
19 HRS
Discharge At 3.9Ω continuously
and end at 0.9V
350 MINS
LR03
(SIZE AAA)
1.5V
10.5
44.5
11.3±0.3
Discharge At 10Ω continuously
and end at 0.9V
7.8 HRS
Discharge At 3.9Ω continuously
and end at 0.9V
130 MINS
LR1
(SIZE N)
1.5V
12
30.2
9.5
Discharge At 10Ω continuously
and end at 0.9V
7.8 HRS
LR50
(SIZE 1A)
1.5V
15.8
16.2
9.3
Discharge At 6.8kΩ continuously
and end at 0.9V
1250 HRS
LR61
(SIZE AAAA)
1.5V
10.5
44.5
6.3
Discharge At 3.9Ω(24h/D) continuously and end at 0.9V
65 MINS
6LR61
9V
26.5(L)*17.5(W)
48.5
43
Discharge At 180Ω(1h/D) continuously and end at 4.8V
980 MINS
6LF22
9V
26.5(L)*17.5(W)
48.5
36
Discharge At 180Ω(24h/D) continuously and end at 4.8V
240 MINS
Packing & Shipping

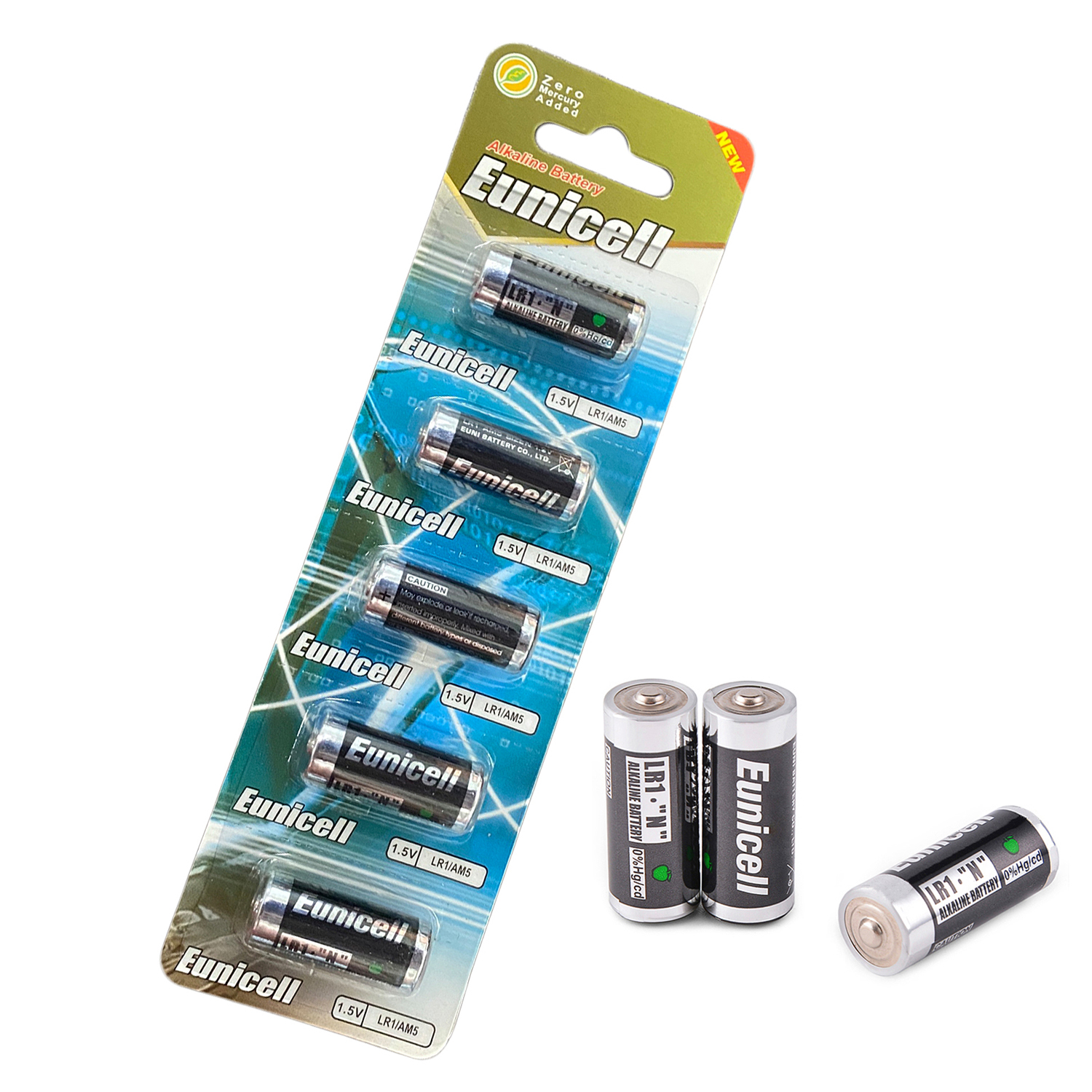

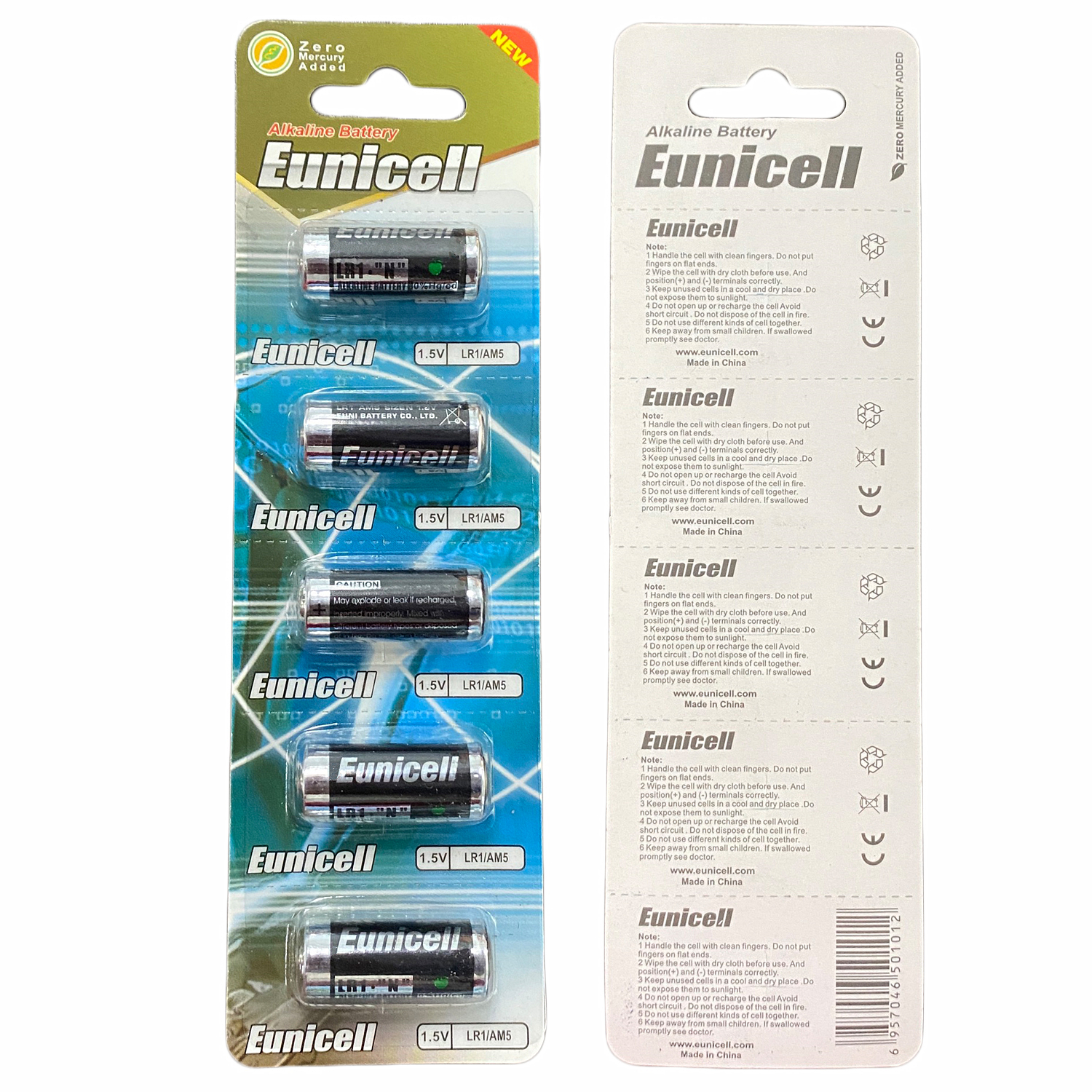

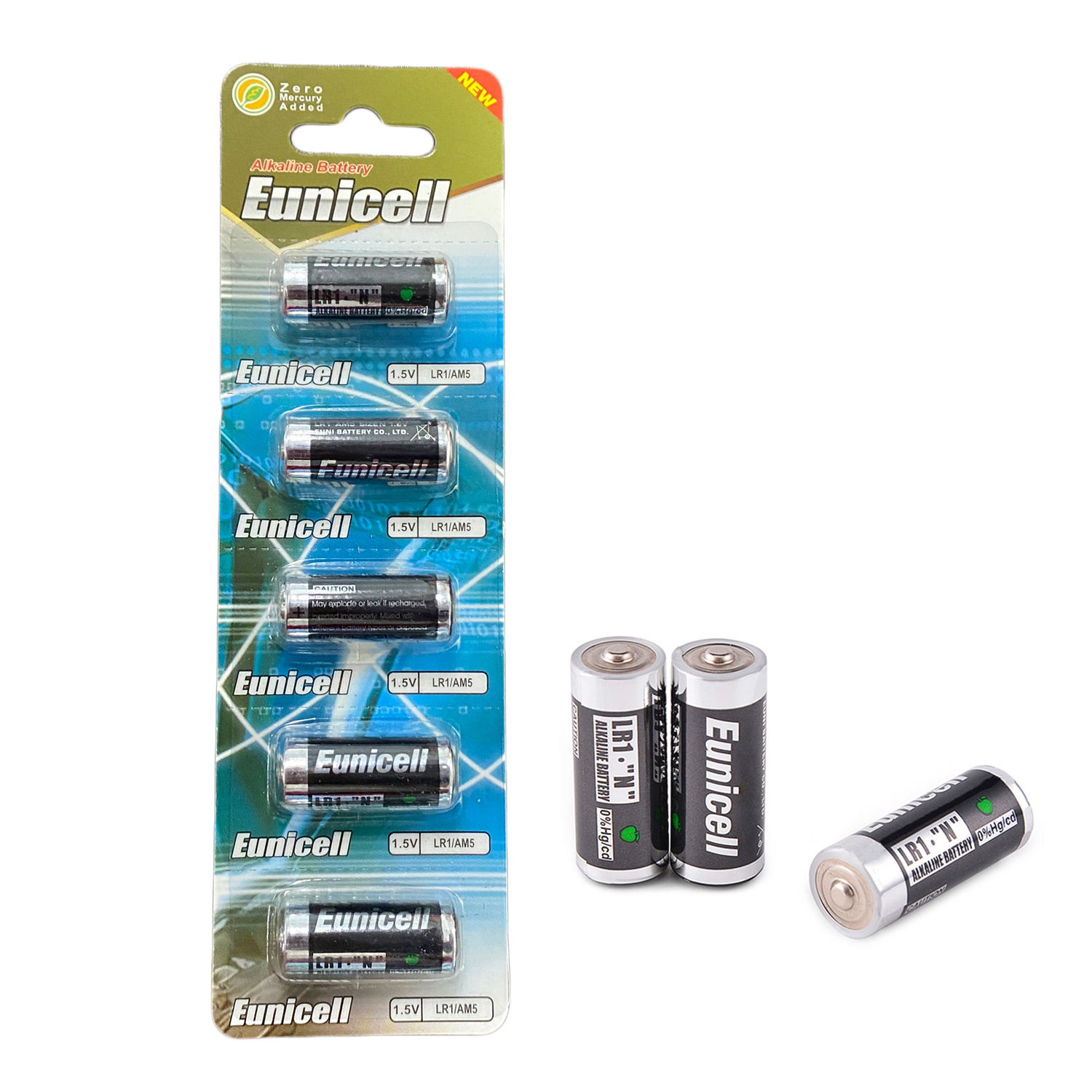

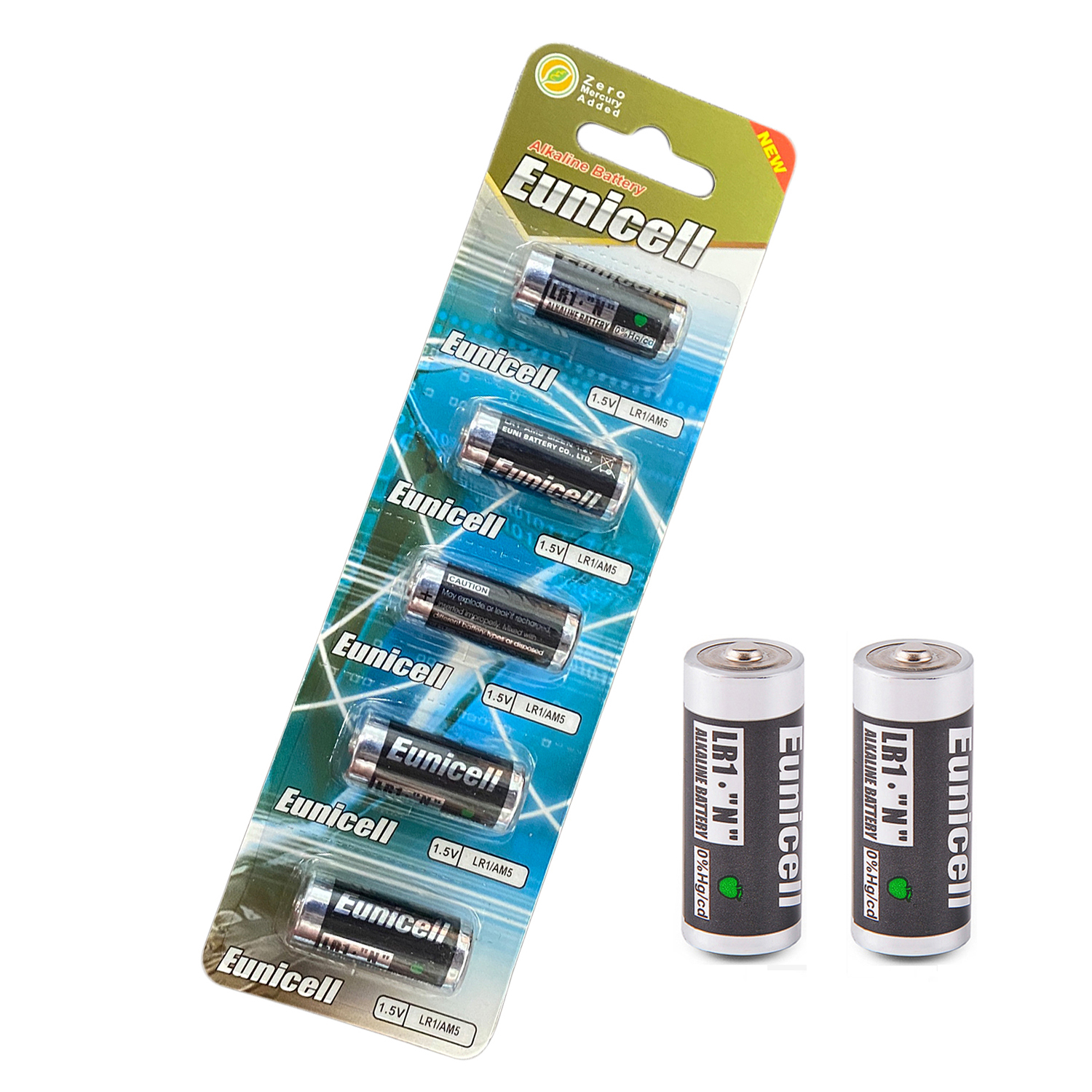

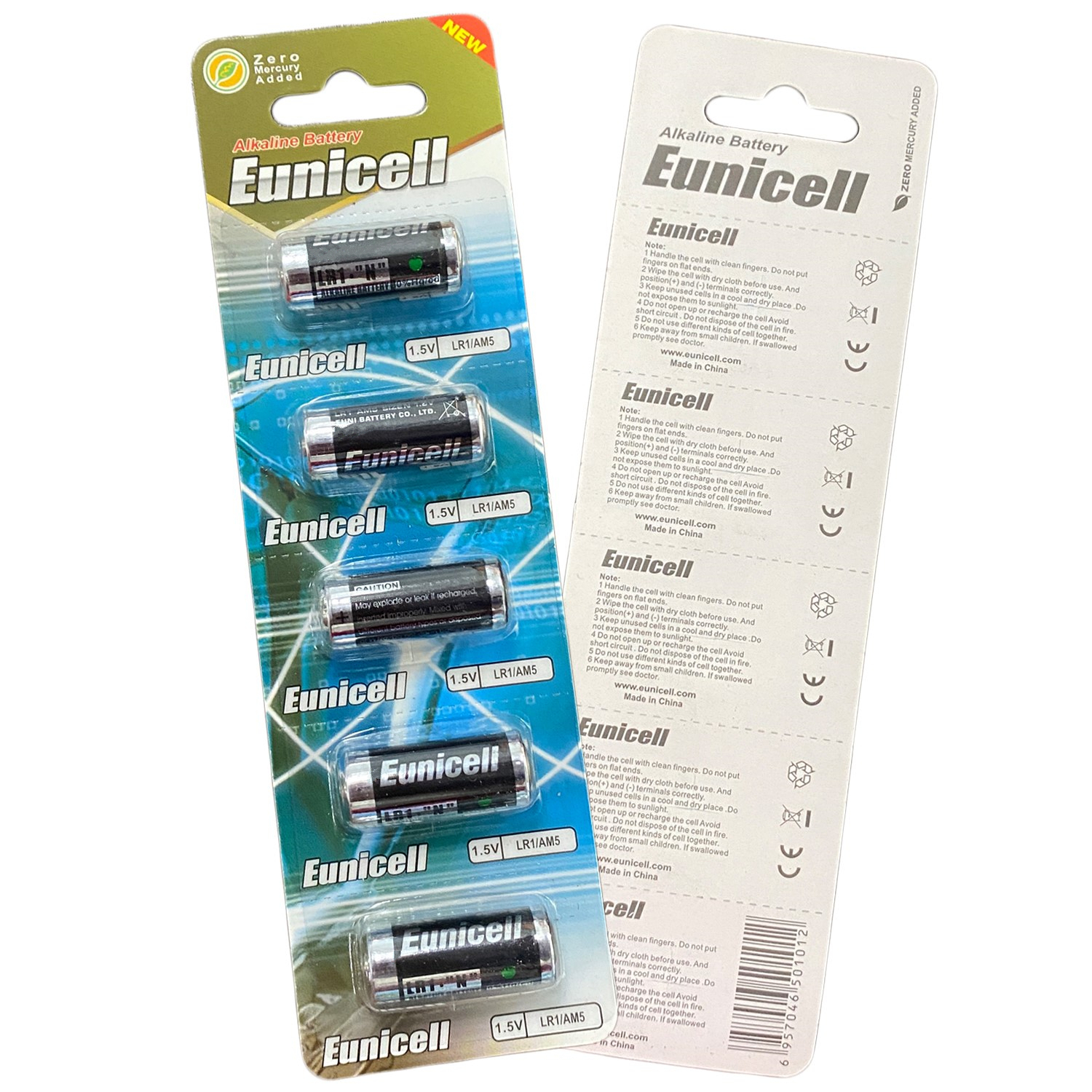

Package Method:

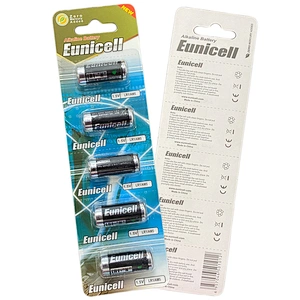

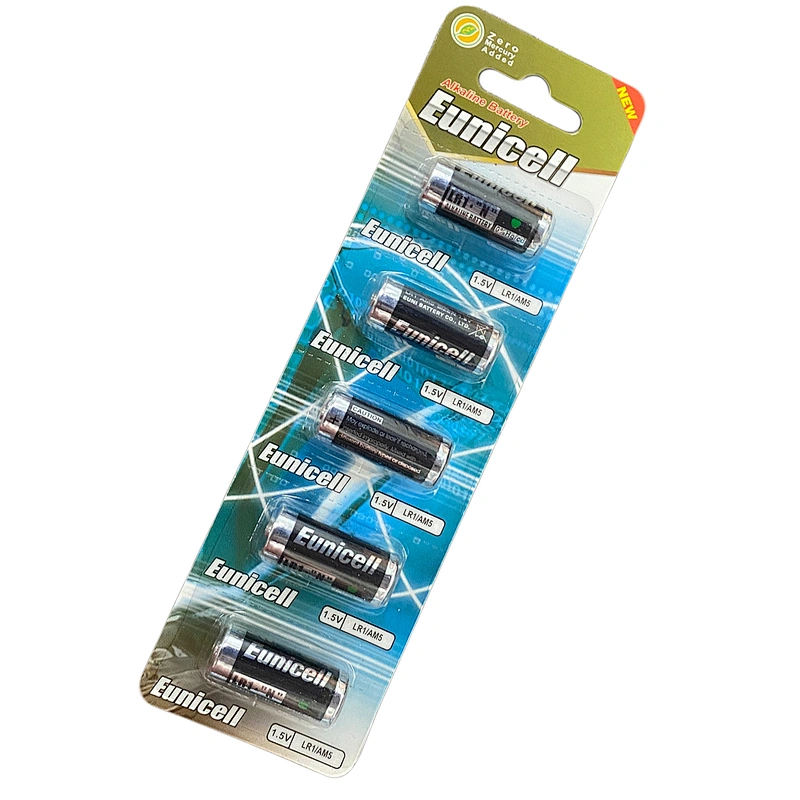

Shrink wrapped package or blister card package.

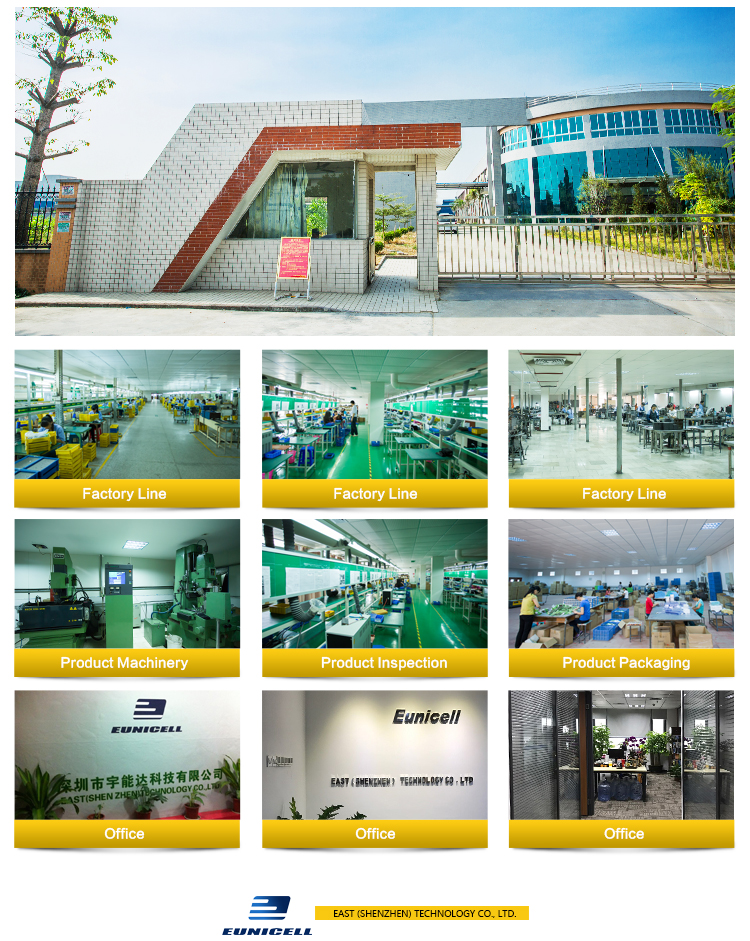

Company Introduction
