- Battery Type:LiMnO2
- Certification:ce
- Certification:ROHS, REACH, SGS
- Brand Name:EUNICELL
- Model Number:cr1616
- Place of Origin:CN;GUA
- certificate:ROHS MSDS SGS CE

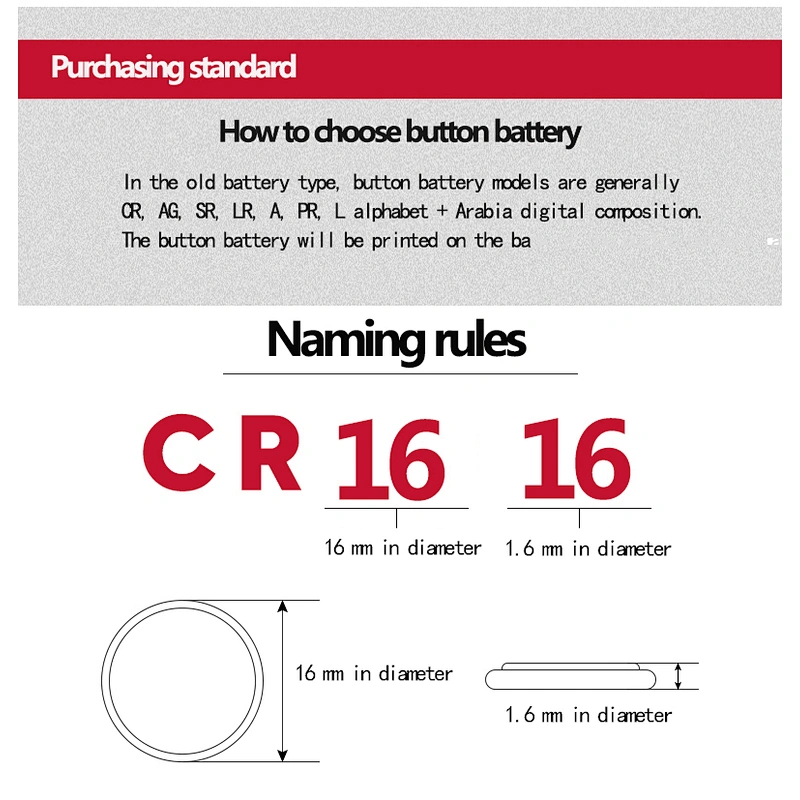

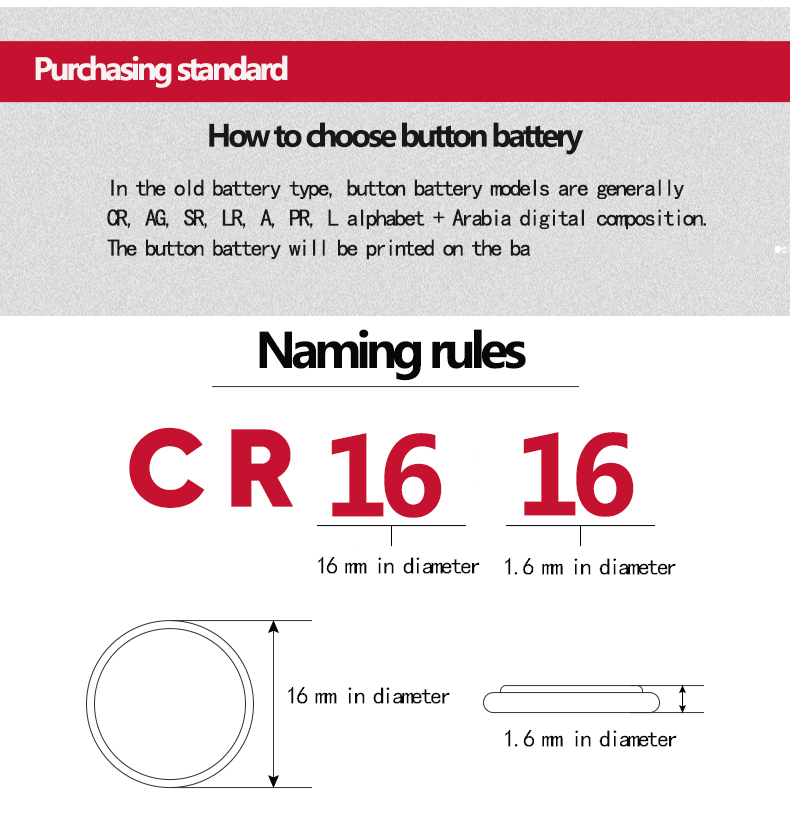

- size:16*1.6mm
- type:3v lithium cell battery
- weight:1.2g
- shelf life:1year

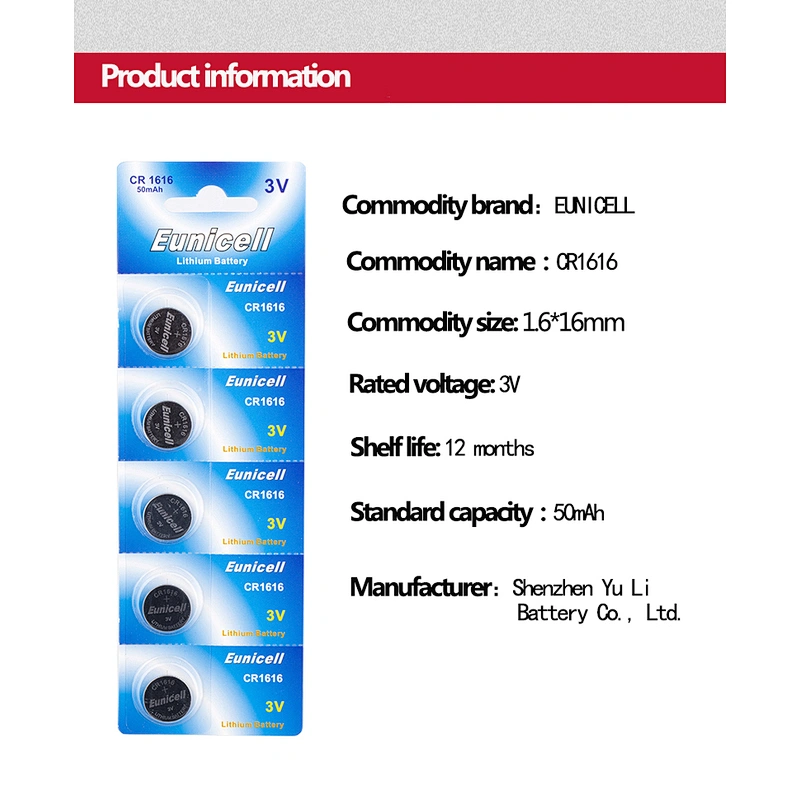

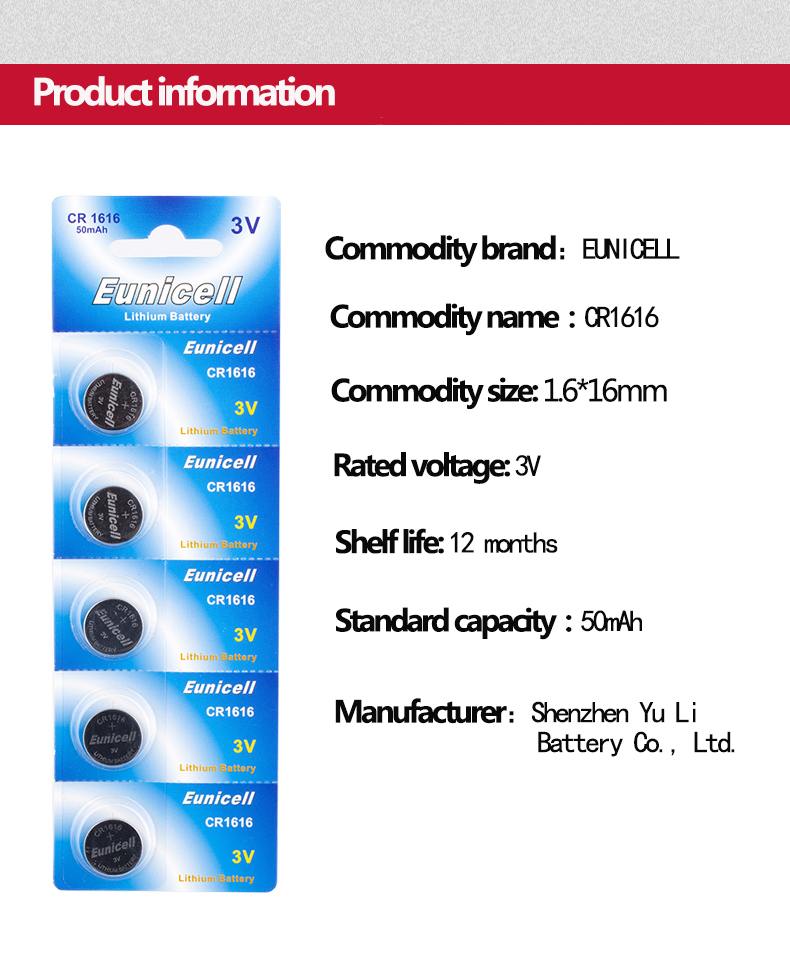

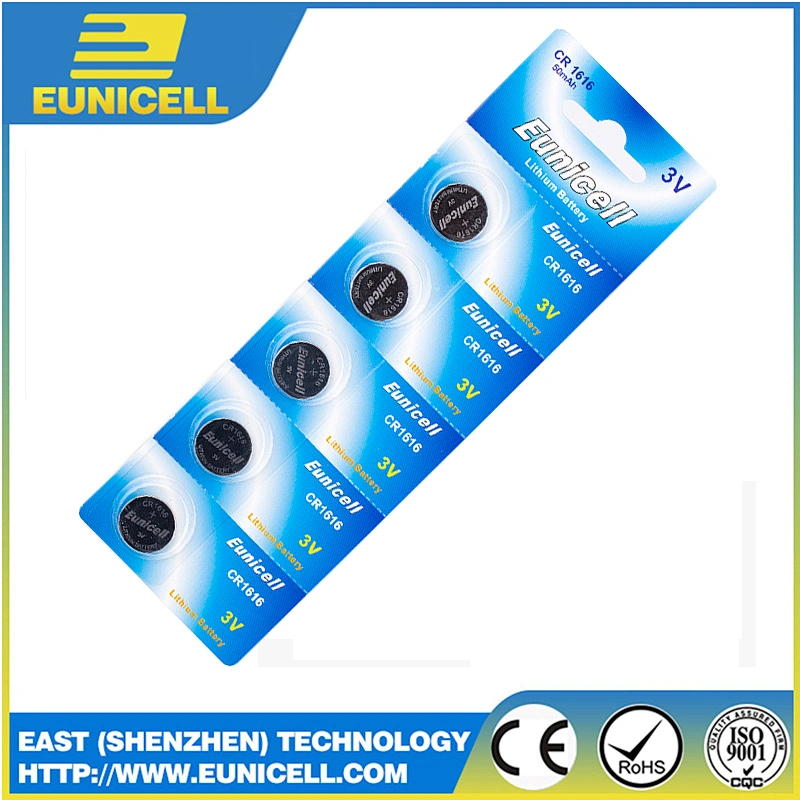

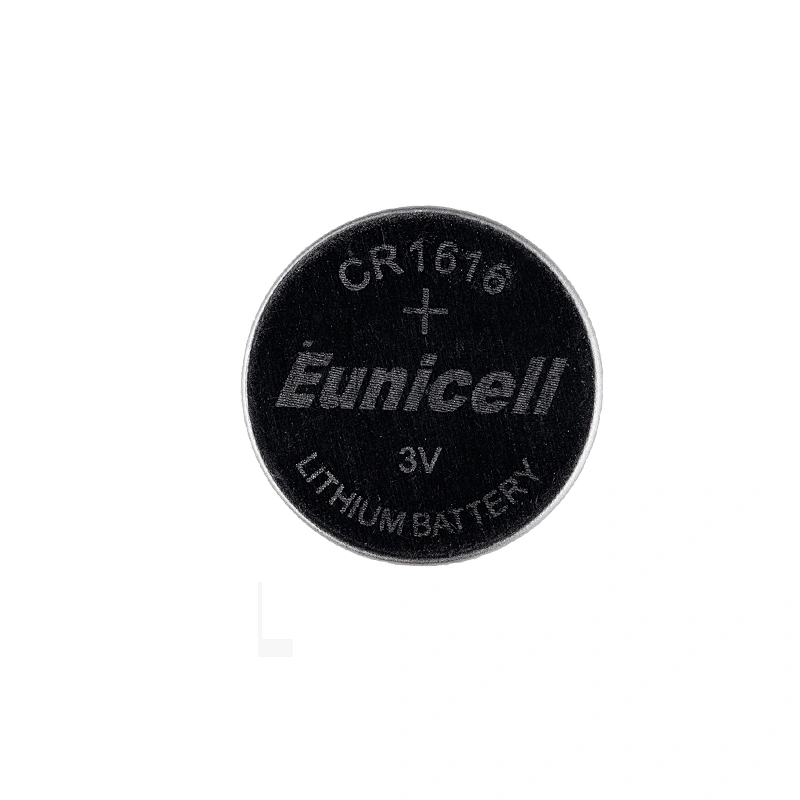

Eunicell CR1616 Lithium Manganese Dioxide Primary Coin Cell Battery
ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
Nominal voltage | V | 3.0 | Standard discharge | |
Nominal capacity | mAh | 50 | Standard discharge | |
Instantaneous short-circuit current |
mA |
≥200 |
Time≤0.5second | |
Off-load voltage | V | ≥3.20 | Unit cell | |
Storage temperature | ℃ | 0-35 |
| |
Standard weight | g | 1.2 | Unit cell | |
Service output | Initial | h | 46 | Continuous discharge with load 3 k Ω ,till 2.0v end-voltage at 20-25℃ |
After 12months storage | h | 45 | ||
High safety: no explosion, no fire and so on.
Environmental protection: at present, the company has carried out the EU"ROSH"directive. The products have been certified by"SGS"and fully meet the requirements of the European customers for the environmental protection of the batteries.
Main uses: watch, shoe lamp, computer motherboard, electronic thermometer, electronic toy, machine core, small electronic gift, Bluetooth wireless product, multi-function wireless remote control, electronic spoon, card type radio, digital product, IC card and so on
Matters of attention:
1. Because the button battery is not recharged at a time, forced charging will cause leakage or damage to the equipment.
2. Battery"+ -"should be installed correctly in the direction specified by the equipment.
3. Prohibit short-circuit, heating, burning and disassembling batteries.
More products please go to official website: https://eunicellbatteries.en.alibaba.com welcome new and old friends to contact us by phone. We will serve you wholeheartedly!
East(Shenzhen)Technology Co.,ltd (Eunicell Battery )is a high-tech enterprise specializing in developing, developing, producing and selling batteries, which belong to two factories, such as production buckle lithium manganese dioxide, buckle type zinc manganese alkaline, cylindrical carbon, alkaline battery and so on.
