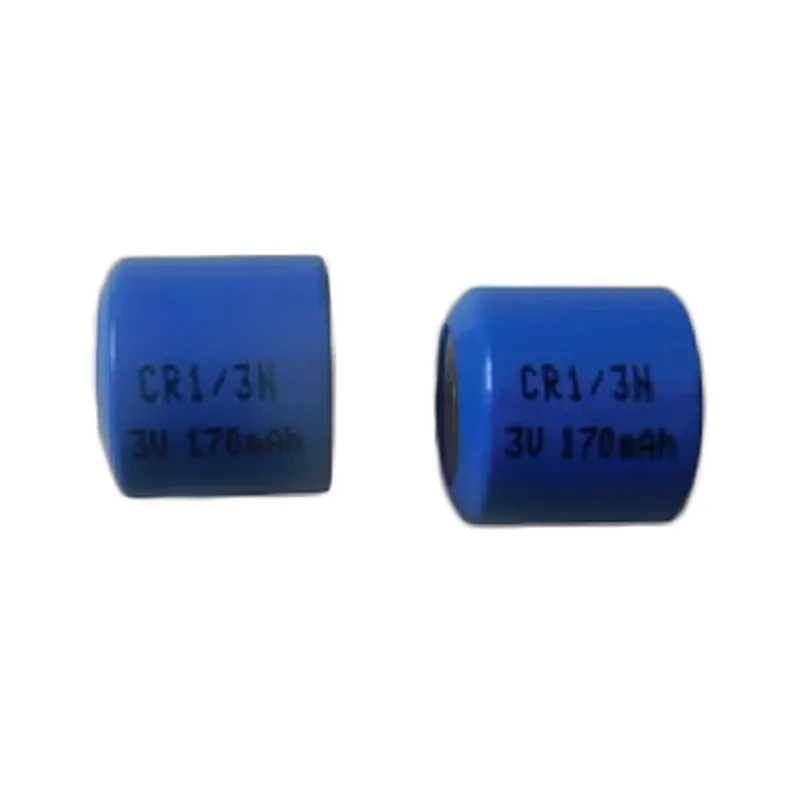

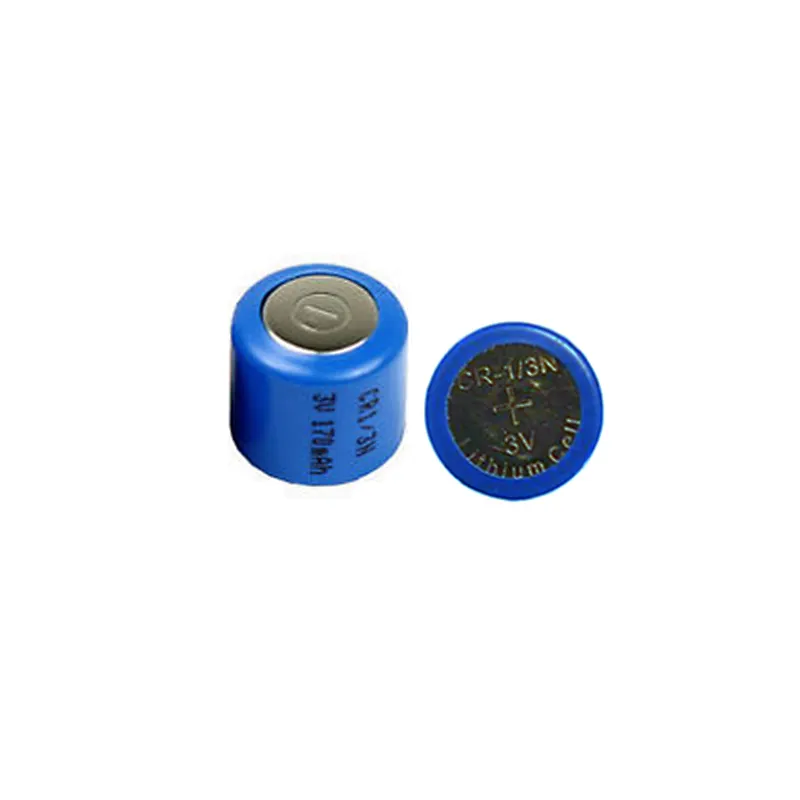

DOG Collar Lithium Battery Replaces 3 Volt DL-1/3N, 2L76, 2L76BP, IEC CR11108, CR1-3N, DL1-3N

Model NO.
CR1/3N
Delivery
FOB
Quantity:
  • Battery Type:LiMnO2
  • Certification:ce

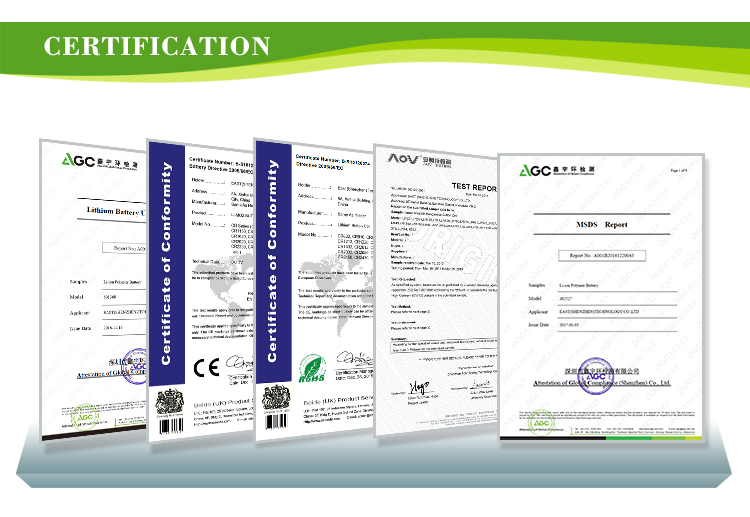

  • Certification:UN38.3,ROHS, SGS, REACH, MSDS
  • Brand Name:EUNICELL
  • Model Number:CR1/3N
  • Place of Origin:CN;GUA
  • Application:Watch
  • Certificate:CE ROHS SGS MSDS

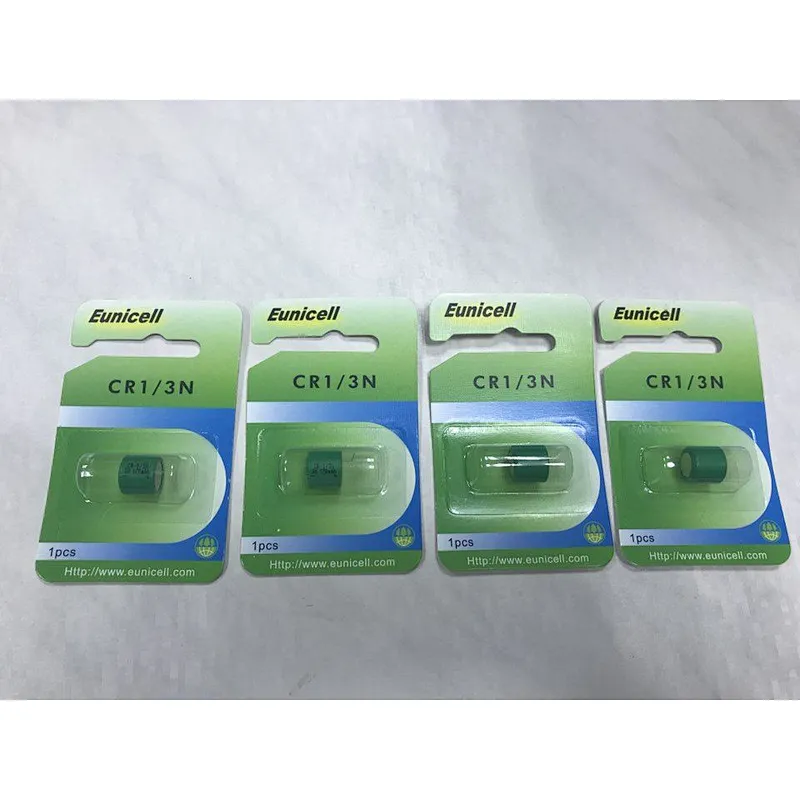

  • Package:Bulk
  • Type:3v Lithium Button Cell
  • Weight:3.2g
  • Product Name:CR1/3N lithium battery
  • Shelf life:1 Year

DOG Collar Lithium Battery Replaces 3 Volt  DL-1/3N, 2L76, 2L76BP, IEC CR11108, CR1-3N, DL1-3N



Product Description

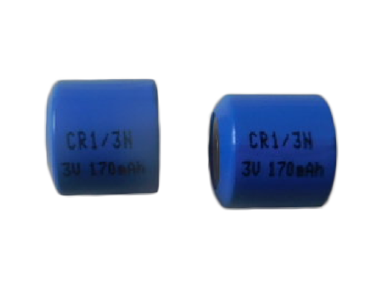

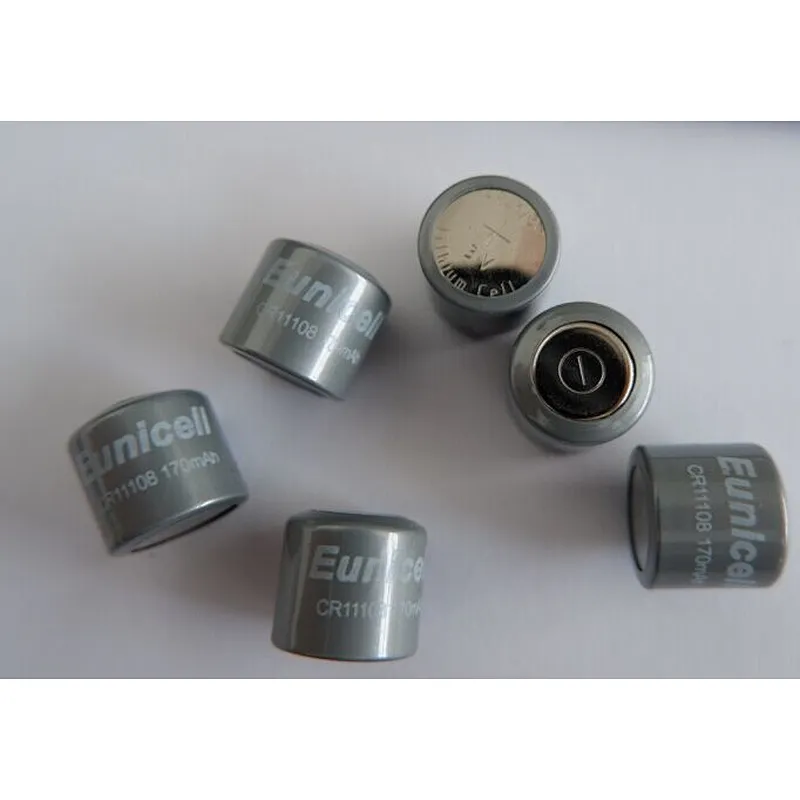

Battery model: CR1/3N / CR11108

Standard voltage: 3.0V;

Rated capacity: 170 (mAh)

Battery size: 11.5 x 10.5 (mm)

Working temperature: -40 C + 60 C.

Battery polarity:"+"("-") is not marked on the bottom.

Technological features: Adopting advanced leak-proof technology, cooperating with high-quality wear-resistant and high-temperature resistant materials, it has a wide range of applicable temperature and long service life. It has excellent leak-proof, storage and lithium battery inherent high voltage, light weight, small size, large specific energy, voltage stability, high current discharge performance, safety and pollution-free characteristics. Compared with other kinds of batteries, they also have the following advantages: 1. The open circuit voltage recovers quickly after short circuit; 2. The low temperature performance is better, even under - 40C condition, it can reach about 60% of the normal temperature; 3. The good storage performance, the normal storage is its annual self-discharge rate < 2%, the storage period is more than 5 times the normal dry battery temperature range (- 2). 0 degrees to +60 degrees.

High safety: no explosion, no fire and so on.

Environmental Protection: At present, the company has implemented the EU"ROSH"directive, the products have passed the"SGS"certification, fully in line with the European customer's environmental protection requirements for batteries.

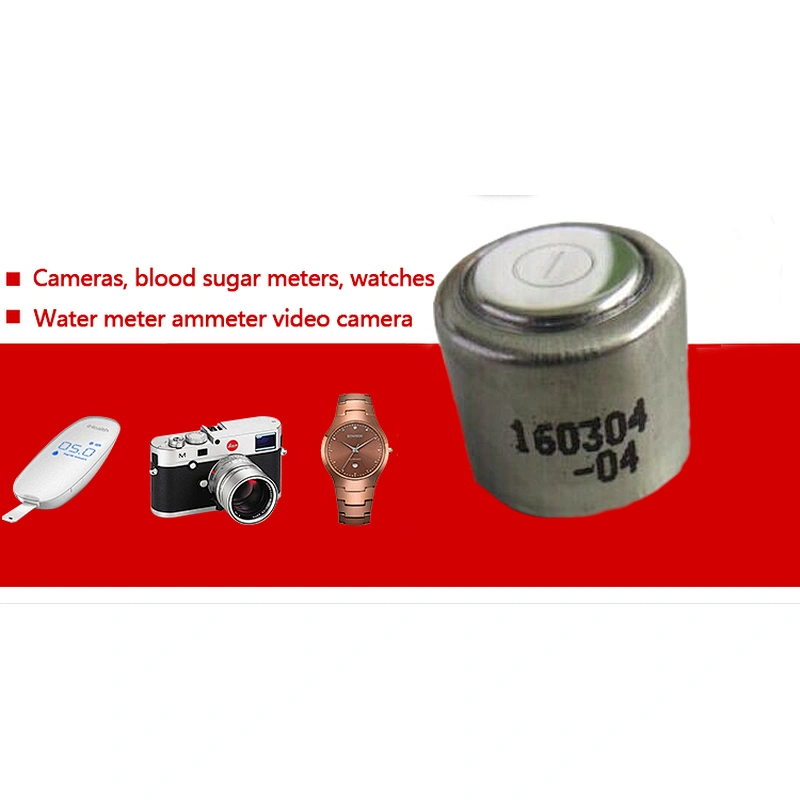

Main uses: cameras, digital cameras, cameras, night vision, LED flashlights, electronic patrol rods, LED display, LED electronic desk lamp, intelligent instruments, luminous drift, IC card water meter, gas meter, ammeter, walkman, CD, MD machine, electric shaver, electric toys, wireless microphone, calculator, smoke Alarm, sanitary ware sensor, electronic doorbell, electronic safe, MP3, electronic dictionary, electronic notebook and other electronic products requiring high current discharge.

(more products please go to official website: http://szyuli1688.com)

ProjectCompanyTechnical indicatorsConditions
Nominal voltageV3Normal discharge
Nominal capacitymAh≥170

Continuous discharge

with 47 K Omega load

Instantaneous

 short circuit current

mA≥300Time is less than 0.5 '
Open circuit voltageV≥3.2All batteries
Storage temperature≤40℃≤40℃
Standard weightg3.2All batteries
Initial periodh≥63

At 3k, 20, 2, and relative

 humidity less than 75%.

12 months laterh≥62Under the condition.







East(Shenzhen)Technology Co.,ltd (Eunicell Battery )is a high-tech enterprise specializing in developing, developing, producing and selling batteries, which belong to two factories, such as production buckle lithium manganese dioxide, buckle type zinc manganese alkaline, cylindrical carbon, alkaline battery and so on.

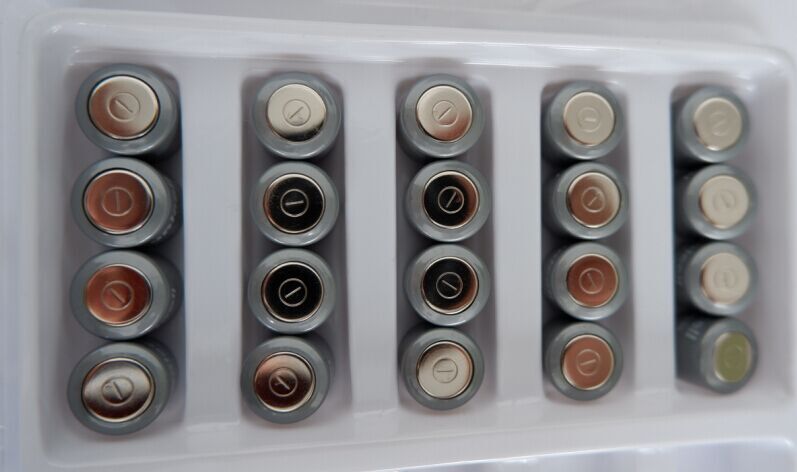

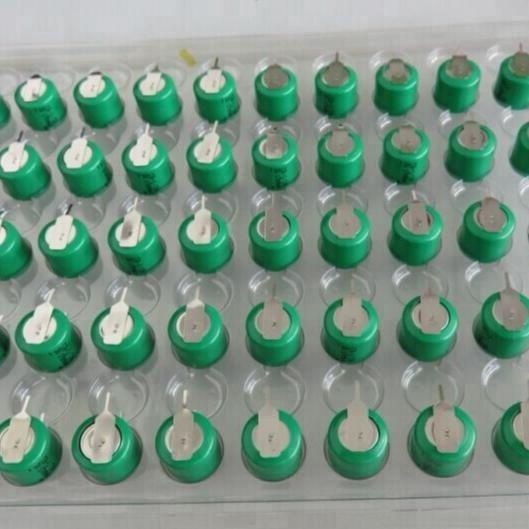

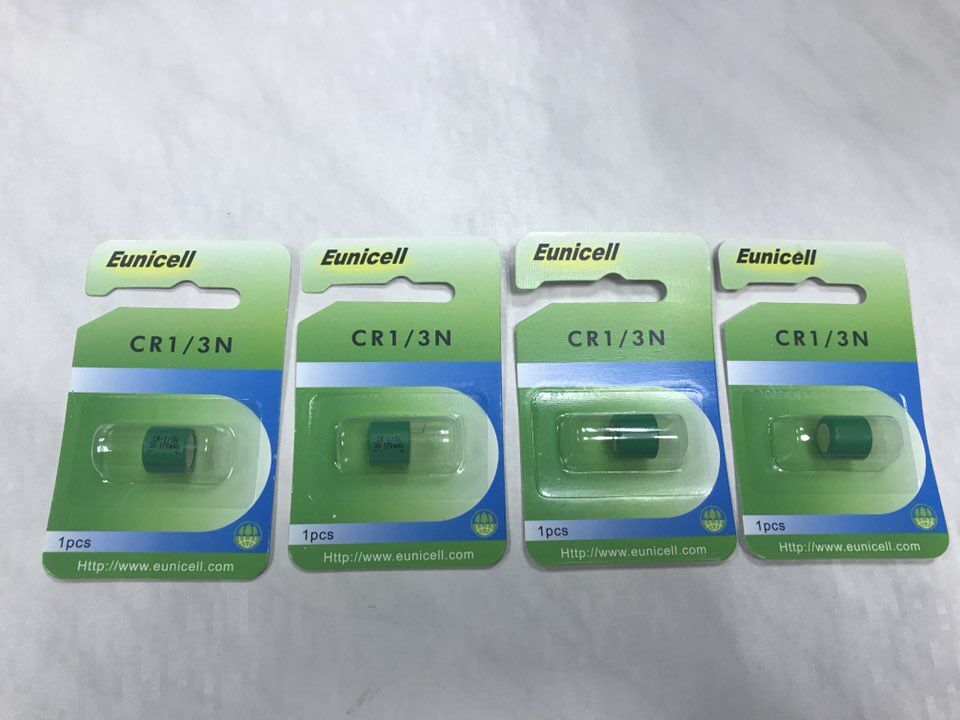

CR1-3N_E_4CR1-3N_2018.6_2CR1-3N tabs_2015.6.27_1.jpg

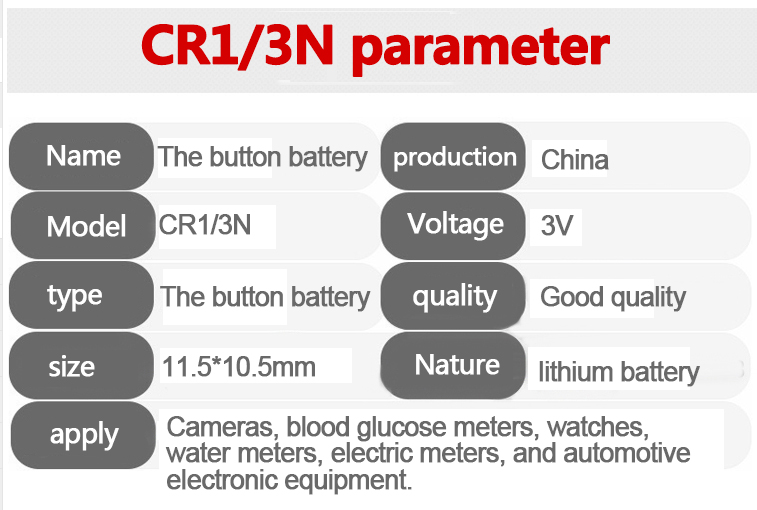

cr1 3n (1).jpgcr1 3n (3).jpgcr1 3n (4).jpgcr1 3n (5).jpgcr1 3n (7).jpg.jpg.jpg
