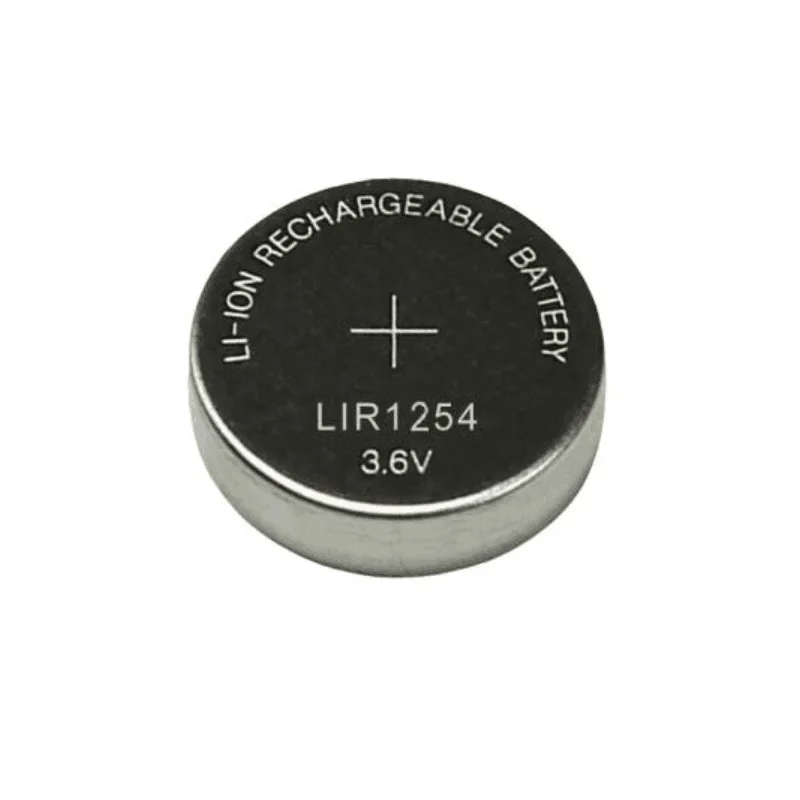

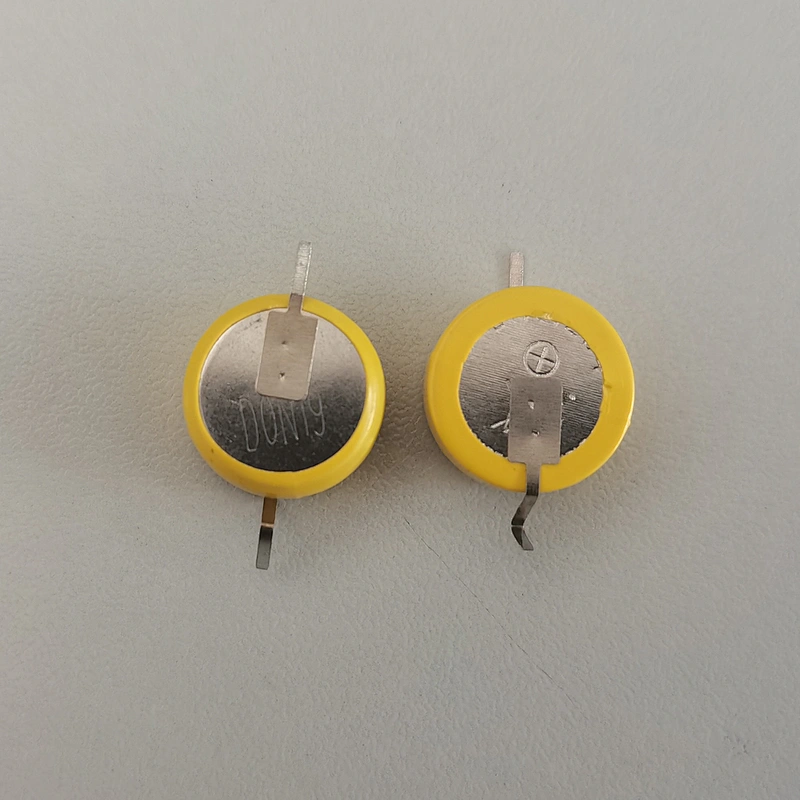

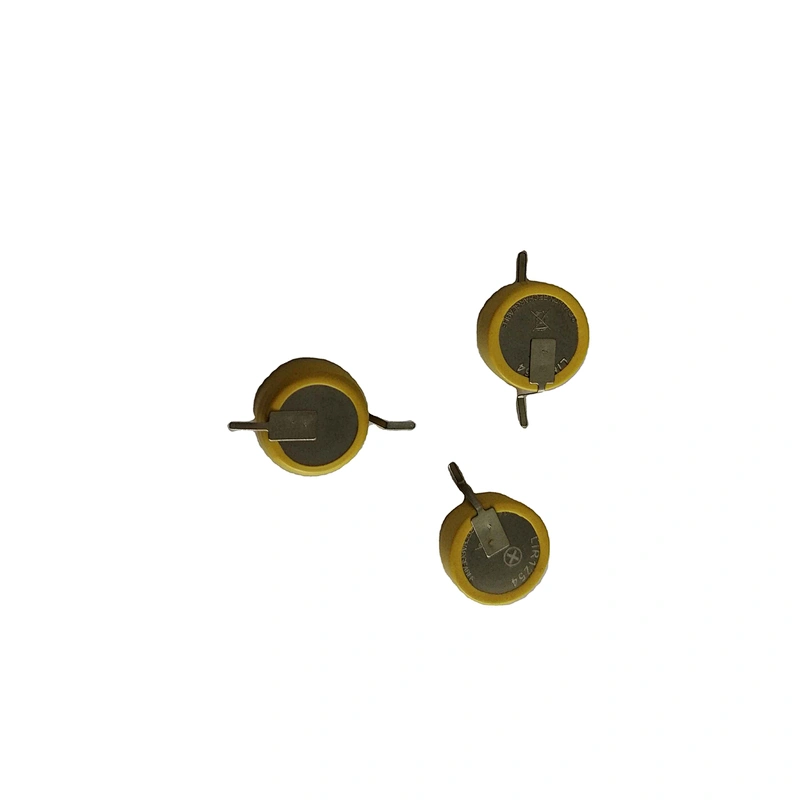

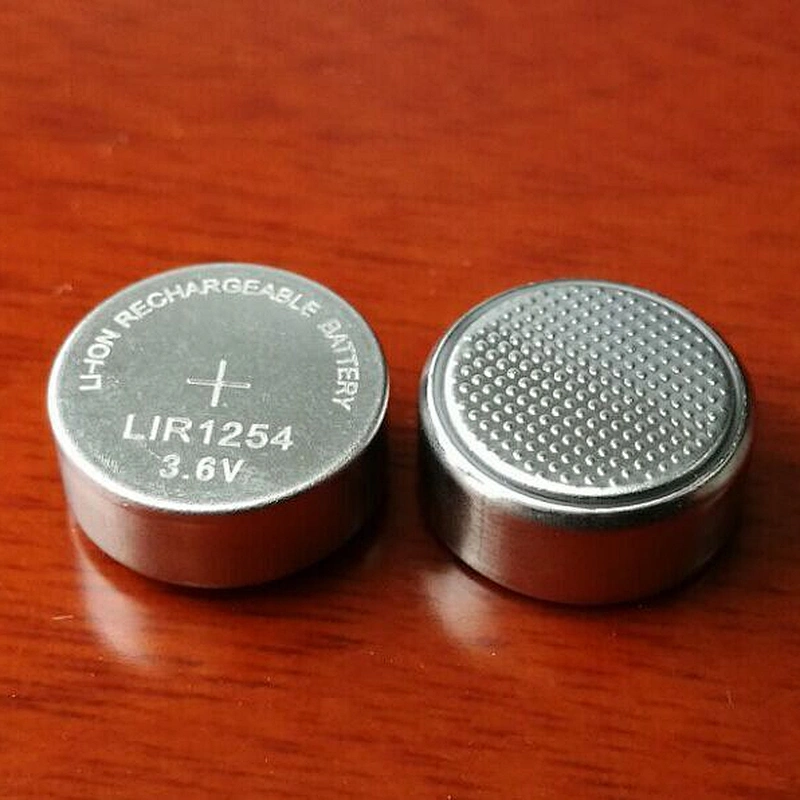

Custom lLIR1254 1254 Rechargeable Lithium Battery With Solder Tabs

Custom lLIR1254 1254 Rechargeable Lithium Battery With Solder Tabs

Model NO.: LIR1254 (CP1254)
Price:: USD 1.80-2.00 / pieces
Minimum order quantity: 200 pieces
Supply Ability: 5.0E7 pieces / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Product Name:LIR1254 3.6V 65mAh Li-ion Rechargeable Batteries
Resistance:≤ 1200 mΩ
Charge Voltage:4.20V ± 0.05V
Storage Temperature:-20~60℃
Cycle life:≥500 cycles
Shelf Life:More Than 3 Years
Sample:Provided Freely
Package:Industrial Tray / Blister Card
Service:With Tabs, Wire, Connector, Terminals, Battery Packs
OEM / ODM:Yes(Accepted)
Application:Headset, MP3 Player, Watch, Sensor, etc
Place of Origin:CN;GUA
Warranty:1 Years
Battery Size:D 12.0mm * H 5.4mm
Brand Name:Eunicell or OEM
Certification:MSDS / RoHS / SGS / CE
Model Number:LIR1254 (CP1254)
Weight:1.7 g

Product Description

Custom lLIR1254 1254 Rechargeable Lithium Battery With Solder Tabs

Brand	Eunicell (ODM&OEM are acceptable)
Model	LIR1254 (CP1254)
Battery Type	Lithium-Ion Rechargeable Battery
Nominal Voltage	3.6V
Nominal Capacity	65mAh
Outside Dimensions	D 12.0mm * H 5.4mm
Weight	1.7 g

Charge Voltage	4.20V ± 0.05V
Discharge Cut-Off Voltage	2.75V
Storage Temperature	-20℃～60℃
Disposable	No
Rechargeable	Yes
Guarantee	1 year (at the temperature of less than 25 deg. C and the relative humidity of less than 75%RH.)
Appearance	Will be free from flaw, stain, deformation, uneven tone, electrolyte leakage and other defects which impair the value of the commodity.

Product performance description

1. 12 months quality warranty.
2. Ultra environmental friendly battery.
3. Long working time.
4. Made from high-quality materials.
5. Excellent performance.
6. Multi-applicable.
7. Excellent storage performance and low self-discharge rate.
8. Excellent safety performance.
9.MSDS / RoHS / SGS / CEcertificate
10. Also if the customers want the battery with PCB tabs, we can do as their drawing.

Product Usage

- Product usage introduction

Warning:

1. Keep separated in a tray and cool place.
2. Do not throw in fire. Do not throw then into a dustbin.
3. Keep clean, wipe the cell with dry cloth.
4. Keep out of the reach of the chidren. If swallowed, visit a doctor.
5. Not rechargeable, remove when fully drained.
6. Connect + to - Correctly.

Related Products

Technical Data Sheet

MODEL			NOMINAL VOLTAGE(V)	NOMINAL CAPACITY (mAh)	RESISTANCE (mΩ)	DIAMETER MAX.SIZE (mm)	HEIGHT MAX.SIZE (mm)	WEIGHT (g)
LIR940	CP940	3.6V	25	≤ 650	9.0	4.0	1
LIR1025		3.6V	6	≤ 2500	10.0	2.5	0.5
LIR1040	CP1040	3.6V	35	≤ 650	10.0	4.0	1.1
LIR1054	CP1054	3.6V	40	≤ 600	10.0	5.4	1.32
LIR1220		3.6V	8	≤ 2000	12.5	2.0	0.7
LIR1254	CP1254	3.6V	65	≤ 1200	12.0	5.4	1.7
LIR1240	CP1240	3.6V	50	≤ 550	12.0	4.0	1.53
LIR1454	CP1454	3.6V	90	≤ 450	14.0	5.4	2.5
LIR1620		3.6V	16	≤ 2000	16.0	2.0	1.1
LIR1654	CP1654	3.6V	60	≤ 400	16.0	5.4	3.4
LIR1654 High capacity		3.6V	90	≤ 1200	16.0	5.4	2.8
LIR2016		3.6V	18	≤ 2000	20.0	1.6	1.5
LIR2025		3.6V	25	≤ 2000	20.0	2.5	2.3
LIR2032		3.6V	40	≤ 600	20.0	3.2	2.7
LIR2050		3.6V	80	≤ 600	20.0	5.0	3.8
LIR2430		3.6V	60	≤ 500	24.5	3.0	3.8
LIR2430 High capacity		3.6V	100	≤ 4600	24.5	3.0	4.5
LIR2450		3.6V	120	≤ 400	24.5	5.0	5.6
LIR2477		3.6V	200	≤ 400	24.5	7.7	7.5
LIR3032		3.6V	120	≤ 400	30.0	3.2	6.2
LIR3048		3.6V	180	≤ 300	30.0	4.8	7.3
LIR103035		3.6V	60	≤ 1200	10303.5			2.7

Packing&Shipping

Company Introduction

FAQ

Q: Why choose lithium over alkaline chemistry?A: Lithium batteries are a great option for today's high-end electronics as these cells typically have higher capacities than their alkaline counterparts. Although rechargeable batteries tend to cost a little more than standard alkaline batteries up front, these costs have reigned in because you won't need to replace rechargeable batteries nearly as often as alkaline cells. We have just about every size of rechargeable battery that you need, with products including protected and non-protected cells.

Q: Can I do OEM? A: Sure! OEM are welcome. Q:Can I get a lower price if I order large quantities? A: Yes. More quantity, cheaper prices. Q: How long is delivery time? A: 2-7 days after deposit received if use our package. OEM will be need 14-20 days.

Q: Is OEM/ODM battery pack available?

A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support. Q: Can you print my logo on the battery cover? A: Yes, custom logo service and branding is available. Q: Is sample order acceptable? A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable. Q: How should I place an order? A: Alibaba trade assurance order and offline orders are both acceptable. Q: How should I pay? What modes of payment do you accept? A: T/T, Paypal, Western Union & Trading Assurance acceptable. Q: Are renowned international brand battery cells available? A: Yes international brand cells are available, please contact us for details. Q: How do you arrange shipment for batteries? A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s). Q: Do you have the documents(Certification) required for battery shipments? A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
